STPRA1010CT - SUPER FAST GLASS PASSIVATED RECTIFIERS

Download the STPRA1010CT datasheet PDF (STPRA1010CT-LITE included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for super fast glass passivated rectifiers.

Features

  • Glass passivated chip Superfast switching time for high efficiency Low forward voltage drop and high current capability Low reverse leakage current High surge capacity Plastic package has UL flammability classification 94V-0 Soft recovery characteristic.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STPRA1010CT-LITE-ON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STPRA1010CT
Manufacturer LITEON
File Size 80.61 KB
Description SUPER FAST GLASS PASSIVATED RECTIFIERS
Datasheet download datasheet STPRA1010CT Datasheet

📁 Similar Datasheet

  • STPR1010CT - (STPR1010CT - STPR1020CT) Ultra Fast Recovery Diodes (Sirectifier Semiconductors)
  • STPR1020 - 10A SUPER-FAST RECTIFIER (DIODES)
  • STPR1020CB - ULTRA-FAST RECOVERY RECTIFIER DIODES (STMicroelectronics)
  • STPR1020CF - ULTRA-FAST RECOVERY RECTIFIER DIODES (ST Microelectronics)
  • STPR1020CFP - ULTRA-FAST RECOVERY RECTIFIER DIODES (ST Microelectronics)
  • STPR1020CG - ULTRA-FAST RECOVERY RECTIFIER DIODES (ST Microelectronics)
  • STPR1020CR - ULTRA-FAST RECOVERY RECTIFIER DIODES (ST Microelectronics)
  • STPR1020CT - ULTRA-FAST RECOVERY RECTIFIER DIODES (ST Microelectronics)
  • STPR1020CT - (STPR1010CT - STPR1020CT) Ultra Fast Recovery Diodes (Sirectifier Semiconductors)
  • STPR1060 - 10A SUPER-FAST RECTIFIER (DIODES)
Other Datasheets by LITE-ON
  • STPRA1020CT - SUPER FAST GLASS PASSIVATED RECTIFIERS
  • STPR1010CT - SUPER FAST GLASS PASSIVATED RECTIFIERS
  • STPR1020CT - SUPER FAST GLASS PASSIVATED RECTIFIERS
  • STPR1030CT - SUPER FAST GLASS PASSIVATED RECTIFIERS
  • STPR1040CT - SUPER FAST GLASS PASSIVATED RECTIFIERS
  • STPR1050CT - SUPER FAST GLASS PASSIVATED RECTIFIERS
  • STPR1060CT - SUPER FAST GLASS PASSIVATED RECTIFIERS
  • STPR1210CT - SUPER FAST GLASS PASSIVATED RECTIFIERS

Full PDF Text Transcription

Click to expand full text

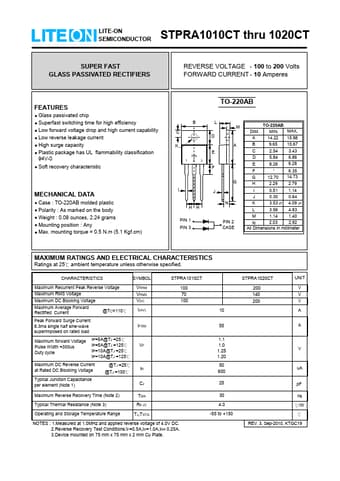

LITE-ON SEMICONDUCTOR STPRA1010CT thru 1020CT SUPER FAST GLASS PASSIVATED RECTIFIERS REVERSE VOLTAGE - 100 to 200 Volts FORWARD CURRENT - 10 Amperes FEATURES Glass passivated chip Superfast switching time for high efficiency Low forward voltage drop and high current capability Low reverse leakage current High surge capacity Plastic package has UL flammability classification 94V-0 Soft recovery characteristic MECHANICAL DATA Case : TO-220AB molded plastic Polarity : As marked on the body Weight : 0.08 ounces, 2.24 grams Mounting position : Any Max. mounting torque = 0.5 N.m (5.1 Kgf.cm) TO-220AB B C K PIN 12 3 I HH PIN 1 PIN 3 L M D A E F G J N PIN 2 CASE TO-220AB DIM. MIN. MAX. A 14.22 15.88 B 9.65 10.67 C 2.54 3.43 D 5.84 6.86 E 8.26 9.28 F - 6.35 G 12.70 14.73 H 2.29 2.79 I 0.
