SBL3050PT, SBL3050PT-LITE SCHOTTKY BARRIER RECTIFIERS

📥 Download Datasheet  Datasheet Preview Page 1

Description

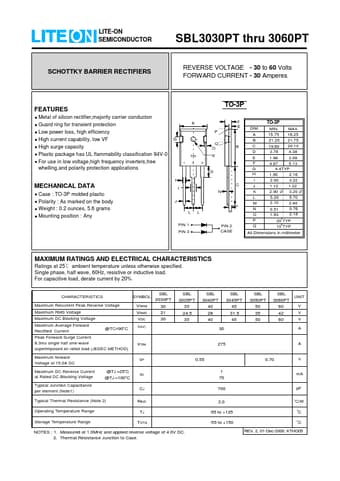

LITE-ON SEMICONDUCTOR SBL3030PT thru 3060PT SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 60 Volts FORWARD CURRENT - 30 Amperes .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBL3050PT, SBL3050PT-LITE. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
SBL3050PT, SBL3050PT-LITE
Manufacturer
LITE-ON
File Size
36.79 KB
Datasheet
SBL3050PT-LITE-ON.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SBL3050PT, SBL3050PT-LITE.
Please refer to the document for exact specifications by model.

Features

* Metal of silicon rectifier,majority carrier conducton Guard ring for transient protection A Low power loss, high efficiency High current capability, low VF G High surge capacity Plastic package has UL flammability classification 94V-0 For use in low voltage,high frequency inverters,free whell

Applications

* PIN 123 MECHANICAL DATA Case : TO-3P molded plastic Polarity : As marked on the body Weight : 0.2 ounces, 5.6 grams Mounting position : Any H I J LL PIN 1 PIN 3 TO-3P P Q O K D N F E B C M PIN 2 CASE TO-3P DIM. MIN. MAX. A 15.75 16.25 B 21.25 21.75 C 19.60 20.10 D 3.78 4.38 E 1.88 2.08 F 4.8
