SBL2060CT, SBL2050CT-LITE SCHOTTKY BARRIER RECTIFIERS

SBL2060CT Description

SCHOTTKY BARRIER RECTIFIER .

SBL2060CT Features

* Metal of silicon rectifier, majority carrier conduction
* Guard ring for transient protection
* Low power loss, high efficiency
* High current capability, low VF
* High surge capability
* Plastic package has UL flammability classification 94V-0

SBL2060CT Applications

* IEC 61000-4-2, level 4 (ESD). > 15KV (air) MECHANICAL DATA
* Case: JEDEC TO-220AB
* Polarity indicator: As marked on the body
* Weight: 0.08 ounces, 2.24 grams
* Terminals: Lead Free Plating
* Max. mounting torque = 0.5 N. m (5.1 Kgf-cm) SBL2050CT th

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBL2060CT, SBL2050CT-LITE. Please refer to the document for exact specifications by model.

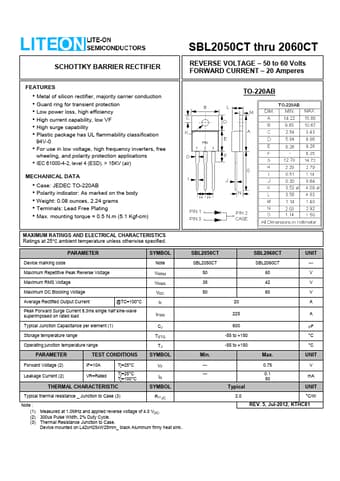

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBL2060CT, SBL2050CT-LITE
Manufacturer
LITE-ON
File Size
121.42 KB
Datasheet
SBL2050CT-LITE-ON.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SBL2060CT, SBL2050CT-LITE.
Please refer to the document for exact specifications by model.
