LTV-244 - Photocoupler

Name: LTV-244
SKU: LTV-244-1583389

LITE-ON

Datasheet Details

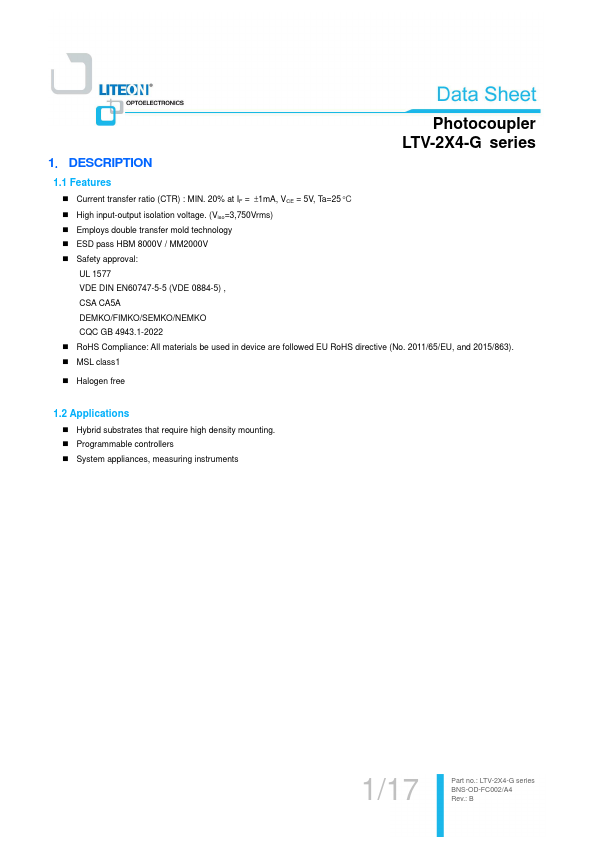

Photocoupler LTV-2X4-G series 1.1

Current transfer ratio (CTR) : MIN. 20% at IF = ±1mA, VCE = 5V, Ta=25 oC.
High input-output isolation voltage. (Viso=3,750Vrms).
Employs double transfer mold technology.
ESD pass HBM 8000V / MM2000V.
Safety approval: UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) , CSA CA5A DEMKO/FIMKO/SEMKO/NEMKO CQC GB 4943.1-2022.
RoHS Compliance: All materials be used in device are followed EU RoHS directive (No. 2011/65/EU, and 2015/863).
MSL class1.
Halogen free 1.2 Ap.
