LTV-0601 - Photocoupler

Name: LTV-0601
SKU: LTV-0601-1583383

LITE-ON

📥 Download Datasheet

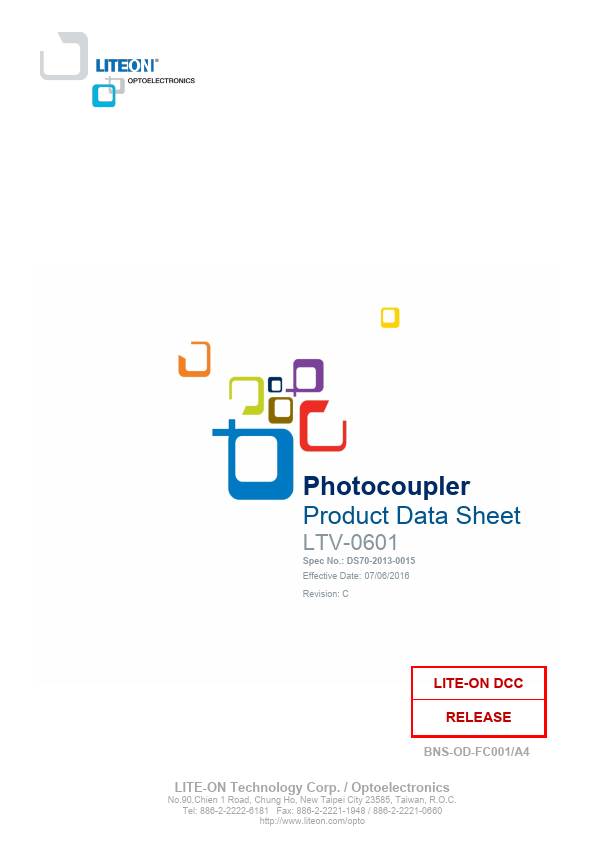

LTV-0601 Datasheet Preview — Preview of LTV-0601 PDF

Datasheet Details

Part number	LTV-0601
Manufacturer	LITEON
File Size	598.23 KB
Description	Photocoupler
Datasheet	LTV-0601-LITEON.pdf

LTV-0601 Product details

Description

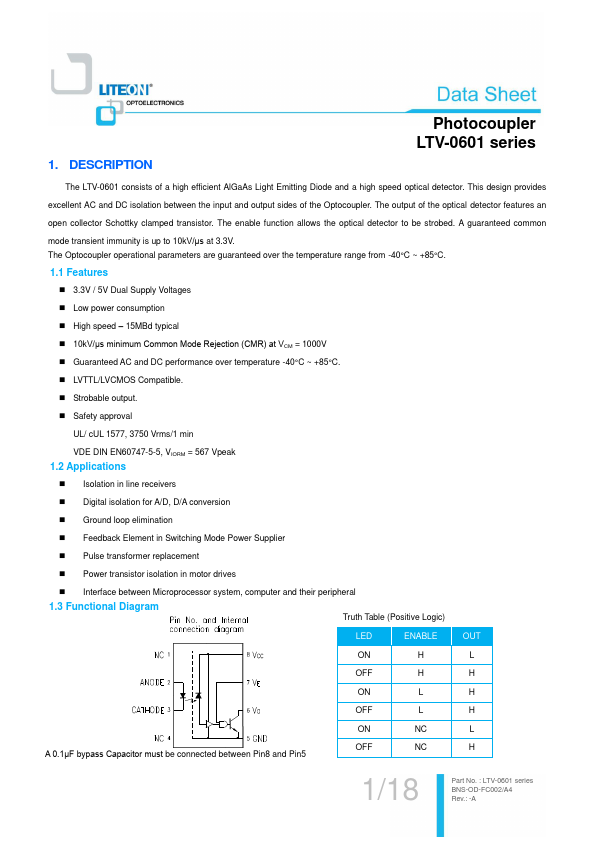

Photocoupler LTV-0601 series The LTV-0601 consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.This design provides excellent AC and DC isolation between the input and output sides of the Optocoupler.The output of the optical detector

Features

an open collector Schottky clamped transistor. The enable function allows the optical detector to be strobed. A guaranteed common mode transient immunity is up to 10kV/μs at 3.3V. The Optocoupler operational parameters are guaranteed over the temperature range from -40°C ~ +85°C. 1.1 Features.
3.3V / 5V Dual Supply Voltages.
Low power consumption.
High speed.
15MBd typical.
10kV/μs minimum Common Mode Rejection (CMR) at VCM = 1000V.
Guaranteed AC and DC per.
