LTP-537E, LTP-537E-LITE Datasheet - LITE-ON

LTP-537E LED Display

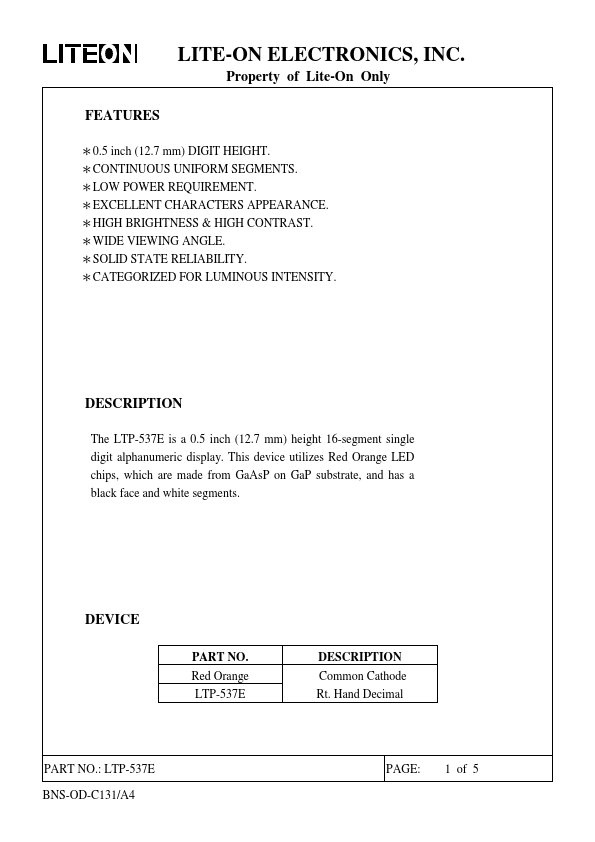

The LTP-537E is a 0.5 inch (12.7 mm) height 16-segment single digit alphanumeric display. This device utilizes Red Orange LED chips, which are made from GaAsP on GaP substrate, and has a black face and white segments. DEVICE PART NO. Red Orange LTP-537E DESCRIPTION Common Cathode Rt. Hand Decimal.

LTP-537E-LITE-ON.pdf

This datasheet PDF includes multiple part numbers: LTP-537E, LTP-537E-LITE. Please refer to the document for exact specifications by model.

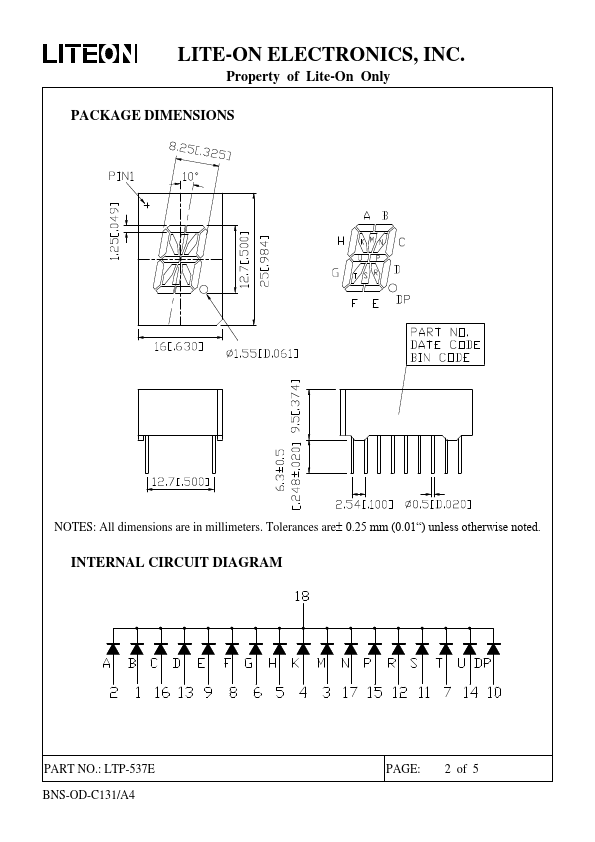

LTP-537E Datasheet Preview Page 2 LTP-537E Datasheet Preview Page 3

Datasheet Details

Part number:

LTP-537E, LTP-537E-LITE

Manufacturer:

LITE-ON

File Size:

351.44 KB

Description:

Led display.

Note:

This datasheet PDF includes multiple part numbers: LTP-537E, LTP-537E-LITE.
Please refer to the document for exact specifications by model.
