6N137S-L, 6N137-L - Photocoupler

LITE-ON

Datasheet Details

Part number	6N137S-L, 6N137-L
Manufacturer	LITEON
File Size	638.95 KB
Description	Photocoupler
Datasheet	6N137-L-LITEON.pdf
Note	This datasheet PDF includes multiple part numbers: 6N137S-L, 6N137-L. Please refer to the document for exact specifications by model.

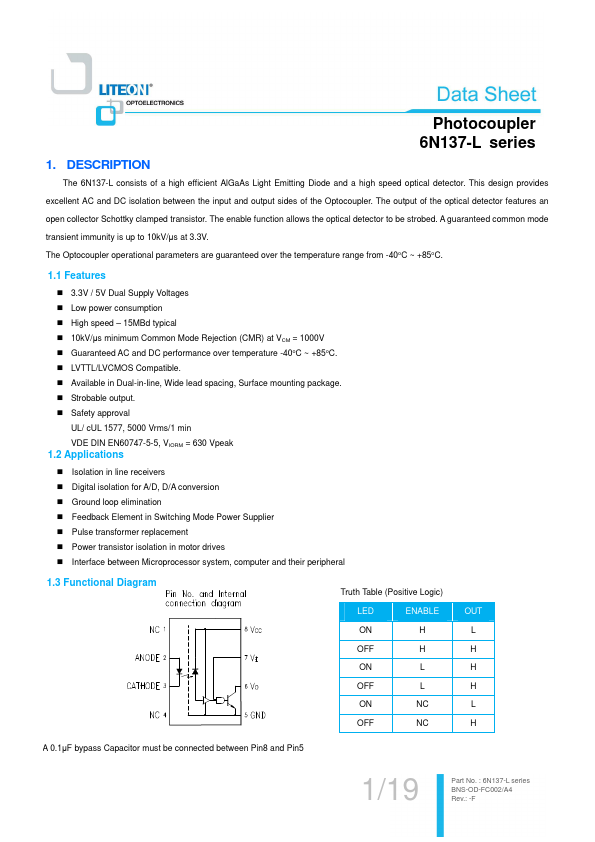

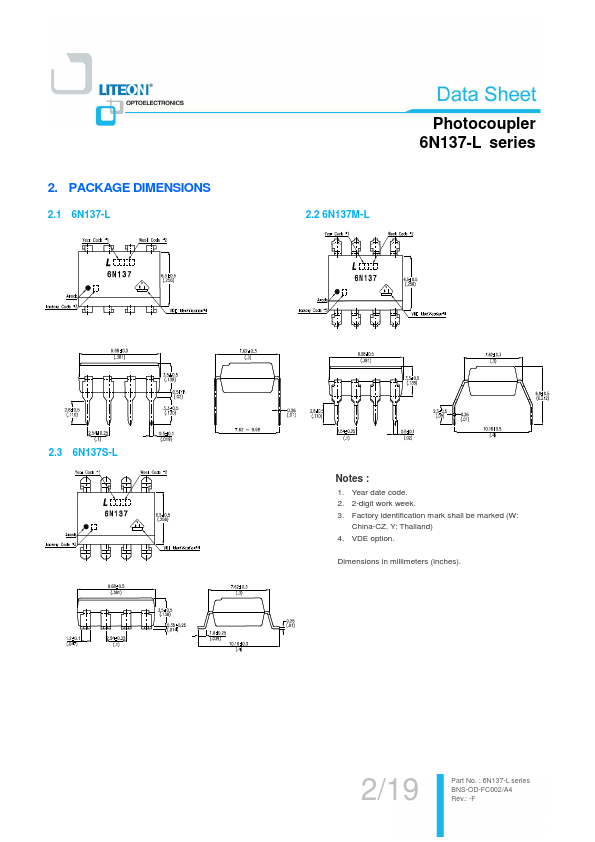

The 6N137-L consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector.

an open collector Schottky clamped transistor. The enable function allows the optical detector to be strobed. A guaranteed common mode transient immunity is up to 10kV/μs at 3.3V. The Optocoupler operational parameters are guaranteed over the temperature range from -40oC ~ +85oC. 1.1 Features.
3.3V / 5V Dual Supply Voltages.
Low power consumption.
High speed.
15MBd typical.
10kV/μs minimum Common Mode Rejection (CMR) at VCM = 1000V.
Guaranteed AC and DC perform.
