LTS-4301WC, LTC-472 - (LTC-4xxx / LTD-4xxx / LTS-4x01A) 7-Segment Numeric LED Display

LITE-ON Electronics

📥 Download Datasheet

LTS-4301WC Datasheet Preview — This datasheet PDF includes multiple part numbers: LTS-4301WC, LTC-472. Please refer to the document for exact specifications by model.

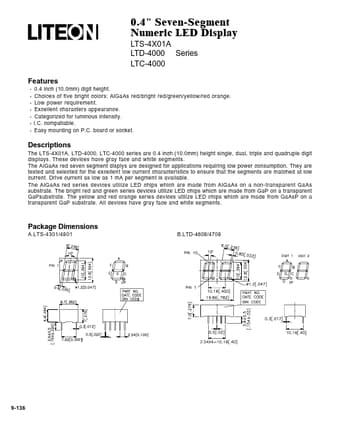

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTS-4301WC, LTC-472
Manufacturer	LITEON Electronics
File Size	450.69 KB
Description	(LTC-4xxx / LTD-4xxx / LTS-4x01A) 7-Segment Numeric LED Display
Datasheet	LTC-472-7WC.pdf
Note	This datasheet PDF includes multiple part numbers: LTS-4301WC, LTC-472. Please refer to the document for exact specifications by model.

LTS-4301WC Product details

Description

The LTS-4X01A, LTD-4000, LTC-4000 series are 0.4 inch (10.0mm) height single, dual, triple and quadruple digit displays.

Features

0.4 inch (10.0mm) digit height. Choices of five bright colors: AlGaAs red/bright red/green/yellow/red orange. Low power requirement. Excellent characters appearance. Categorized for luminous intensity. I. C. compatiable. Easy mounting on P. C. board or socket.
