ML3S10C120 - 10A 1200V SiC Schottky Diode

Product Overview

📥 Download Datasheet

ML3S10C120 10A 1200V SiC Schottky Diode by LIPTAI - Datasheet Preview — Datasheet preview – ML3S10C120

Datasheet Details

Part number	ML3S10C120
Manufacturer	LIPTAI
File Size	220.14 KB
Description	10A 1200V SiC Schottky Diode
Datasheet	ML3S10C120 Datasheet

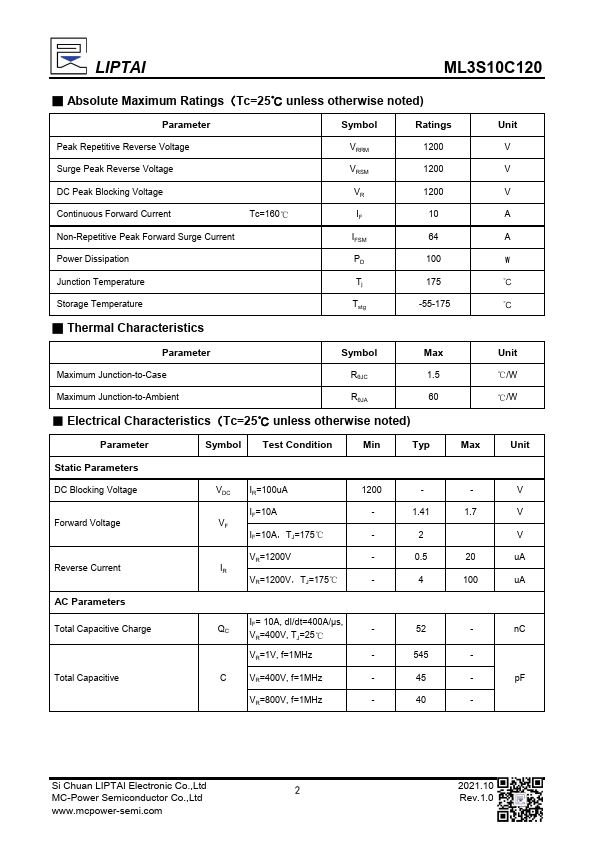

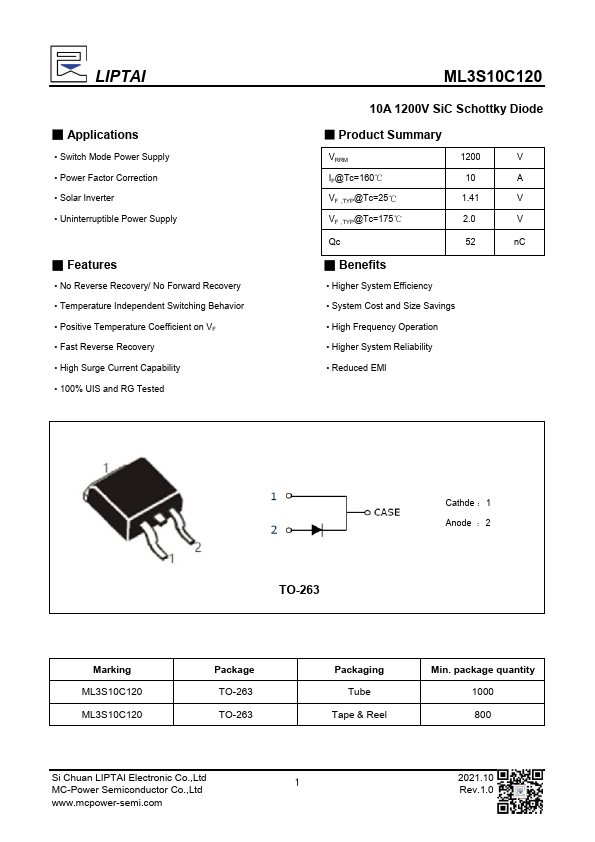

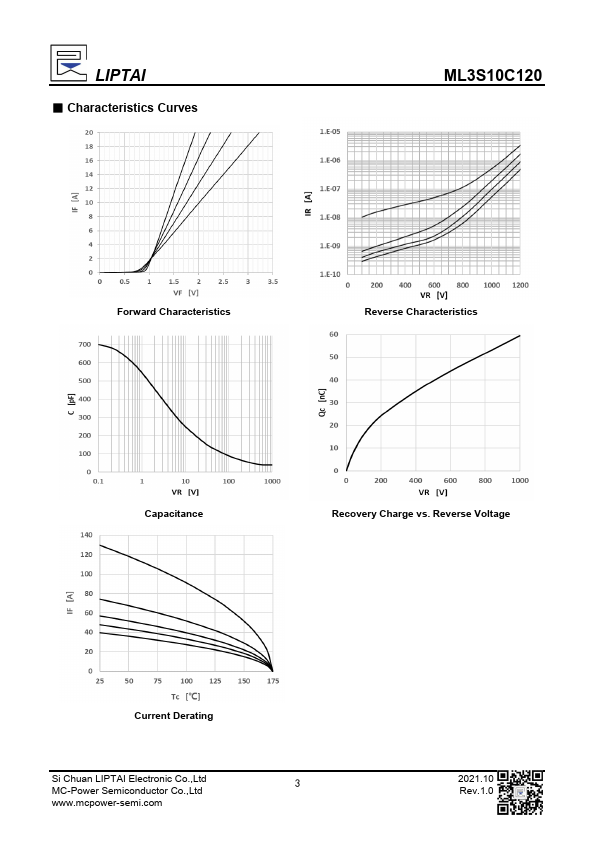

Additional preview pages of the ML3S10C120 datasheet.

Product details

Features

s.
No Reverse Recovery/ No Forward Recovery.
Temperature Independent Switching Behavior.
Positive Temperature Coefficient on VF.
Fast Reverse Recovery.
High Surge Current Capability.
100% UIS and RG Tested ML3S10C120 10A 1200V SiC Schottky Diode.
Product Summary VRRM IF@Tc=160℃ VF ,TYP@Tc=25℃ VF ,TYP@Tc=175℃ 1200 V 10 A 1.41 V 2.0 V Qc 52 nC.
Benefits.
Higher System Efficiency.
System Cost and Size.
