MK080R100TL - Silicon 100V N-Channel MOSFET

Product Overview

📥 Download Datasheet

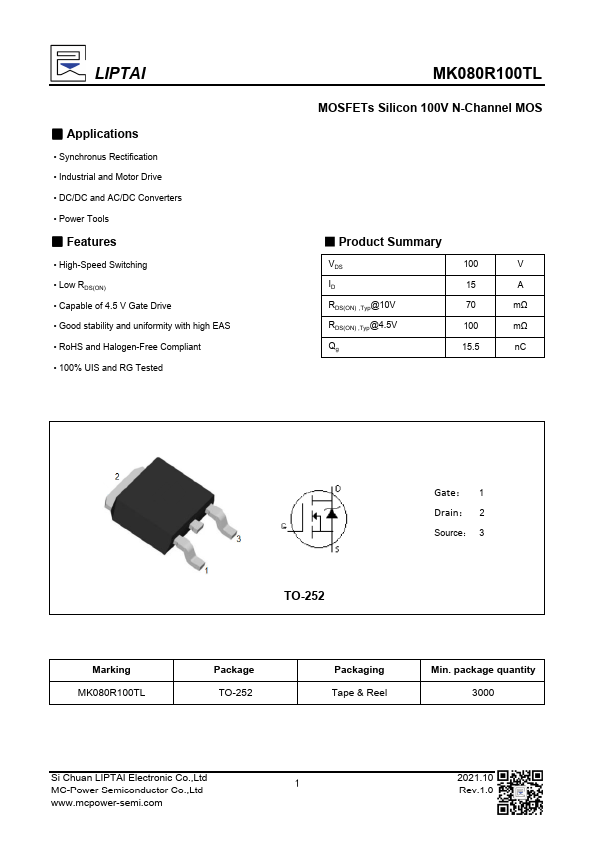

MK080R100TL Silicon 100V N-Channel MOSFET by LIPTAI - Datasheet Preview — Datasheet preview – MK080R100TL

Datasheet Details

Part number	MK080R100TL
Manufacturer	LIPTAI
File Size	574.41 KB
Description	Silicon 100V N-Channel MOSFET
Datasheet	MK080R100TL Datasheet

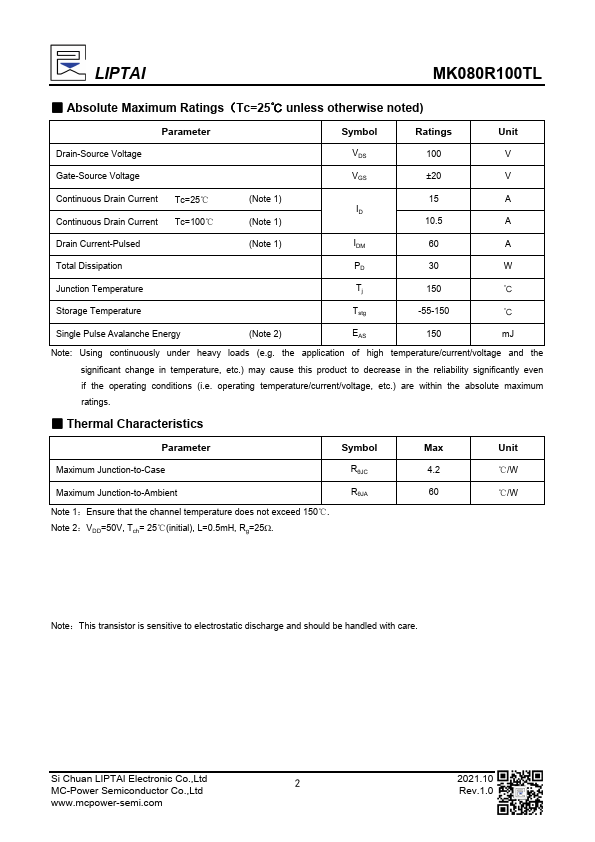

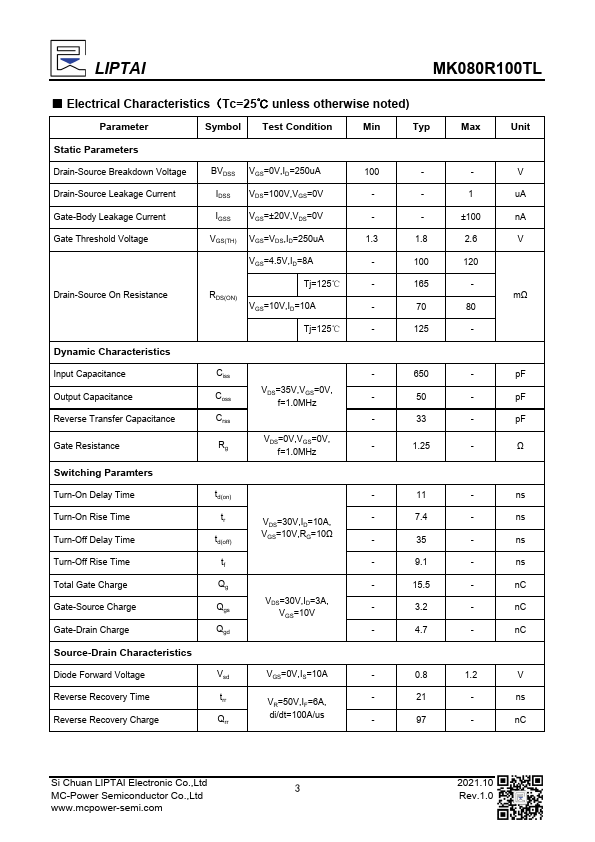

Additional preview pages of the MK080R100TL datasheet.

Product details

Features

s.
High-Speed Switching.
Low RDS(ON).
Capable of 4.5 V Gate Drive.
Good stability and uniformity with high EAS.
RoHS and Halogen-Free Compliant.
100% UIS and RG Tested MK080R100TL MOSFETs Silicon 100V N-Channel MOS.
Product Summary VDS ID RDS(ON) ,Typ@10V RDS(ON) ,Typ@4.5V Qg 100 V 15 A 70 mΩ 100 mΩ 15.5 nC Marking MK080R100TL TO-252 Gate： 1 Drain： 2 Source： 3 Package TO-252 Packaging Tape & Reel Min. package quantity.
