UC3843A, UC3842A - CURRENT MODE PWM CONTROLLER

Name: UC3843A
SKU: UC3843A-1407940

LINFINITY

The UC3843A by LINFINITY is a CURRENT MODE PWM CONTROLLER. Below is the official datasheet preview.

Datasheet Details

Part number	UC3843A, UC3842A
Manufacturer	LINFINITY
File Size	225.72 KB
Description	CURRENT MODE PWM CONTROLLER
Datasheet	UC3842A-LINFINITY.pdf
Note	This datasheet PDF includes multiple part numbers: UC3843A, UC3842A. Please refer to the document for exact specifications by model.

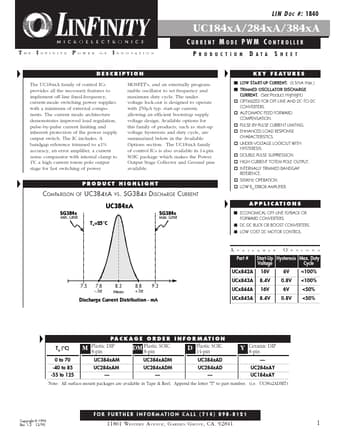

Additional preview pages of the UC3843A datasheet.

The UC184xA family of control ICs provides all the necessary

to implement off-line fixed-frequency, current-mode switching power supplies with a minimum of external components. The current mode architecture demonstrates improved load regulation, pulse-by-pulse current limiting and inherent protection of the power supply output switch. The IC includes: A bandgap reference trimmed to ±1% accuracy, an error amplifier, a current sense comparator with internal clamp to 1V, a high current totem pole output stage for fast switching of power MOSFET's, and an ext.
