LUR11240H-S4-PF Datasheet (LIGITEK ELECTRONICS) - SUPER BRIGHT TOWER TYPE LED LAMPS

LUR11240H-S4-PF, SUPER BRIGHT TOWER TYPE LED LAMPS

This test is conducted for the purpose of detemining the resistance of a part in electrical and themal stressed.

Reference Standard MIL-STD-750: 1026 MIL-STD-883: 1005 JIS C 7021: B-1 Operating Life Test High Temperature Storage Test 1.Ta=105 ℃±5℃ 2.t=1000 hrs (-24hrs, +72hrs) The purpose of th

LIGITEK ELECTRONICS CO.,LTD.

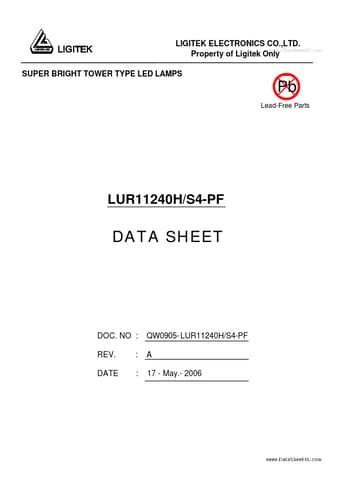

www.DataSheet4U.com Property of Ligitek Only SUPER BRIGHT TOWER TYPE LED LAMPS Pb Lead-Free Parts LUR11240H/S4-PF DATA SHEET DOC.

NO : REV.

DATE : : QW0905- LUR11240H/S4-PF A 17 - May.- 2006 LIGITEK ELECTRONICS CO.,LTD.

Property of Ligitek Only www.DataSheet4U.com PART NO.

LUR11240H/S4-PF Page 1/5 Package Dimensions 2.4 R1.7 3.3 1.8 1.6 1.5MAX 3.0 0.5 TYP 25.0MIN 1.0MIN 2.54TYP + - Note : 1.All dimension are in millimeter tolerance is ± 0.25
