GL5537 - CdS PHOTOCONDUCTIVE CELLS

📥 Download Datasheet

Datasheet Details

Part number GL5537
Manufacturer LIDA
File Size 249.63 KB
Description CdS PHOTOCONDUCTIVE CELLS
Datasheet download datasheet GL5537 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GL5537 (GL5516 - GL5659D) PHOTO CONDUCTIVE CELL ETC
GL5537 MINIATURE CADMIUM SULPHIDE PHOTOCONDUCTIVE CELL JCHL
GL5537-1 GL5516 - GL5549 Photoresistor ETC
GL5537-1 (GL5516 - GL5549) Photoresistor CdS
GL5537-1 MINIATURE CADMIUM SULPHIDE PHOTOCONDUCTIVE CELL JCHL

Other Datasheets by LIDA

Part Number Description

Full PDF Text Transcription

Click to expand full text

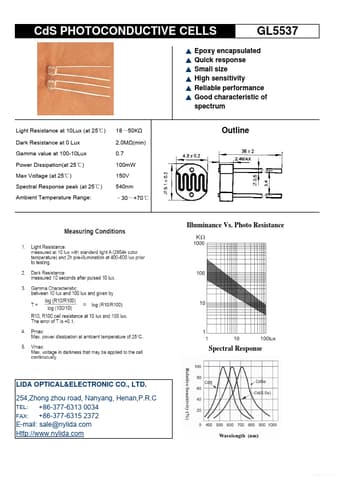

CdS PHOTOCONDUCTIVE CELLS ▲ ▲ ▲ ▲ ▲ ▲ GL5537 Epoxy encapsulated Quick response Small size High sensitivity Reliable performance Good characteristic of spectrum Light Resistance at 10Lux (at 25℃) Dark Resistance at 0 Lux Gamma value at 100-10Lux Power Dissipation(at 25℃) Max Voltage (at 25℃) Spectral Response peak (at 25℃) Ambient Temperature Range: 18～50KΩ 2.0MΩ(min) 0.7 100mW 150V 540nm ﹣30～+70℃ Outline Illuminance Vs. Photo Resistance Spectral Response LIDA OPTICAL&ELECTRONIC CO., LTD. 254,Zhong zhou road, Nanyang, Henan,P.R.C TEL: +86-377-6313 0034 FAX: +86-377-6315 2372 E-mail: sale@nylida.com Http://www.nylida.com Free Datasheet http://www.datasheet4u.
