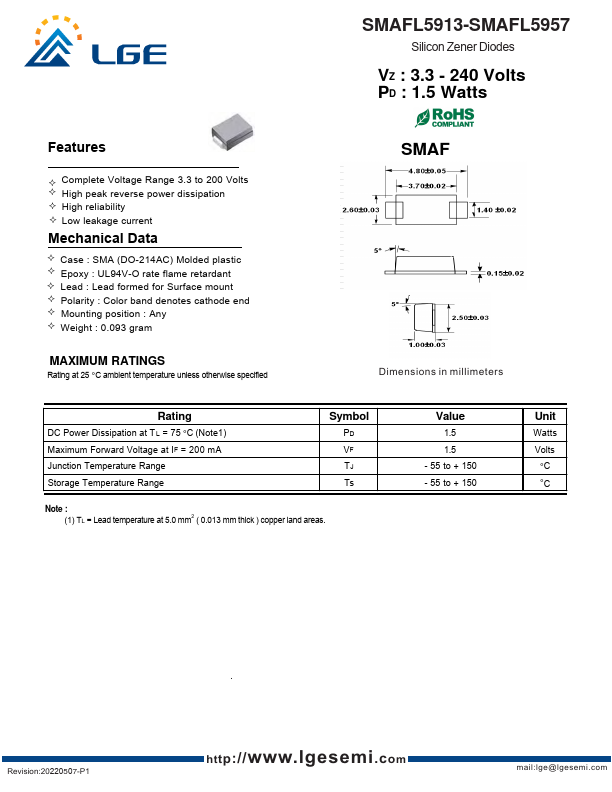

SMAFL5938 Features
* Complete Voltage Range 3.3 to 200 Volts High peak reverse power dissipation High reliability Low leakage current Mechanical Data Case : SMA (DO-214AC) Molded plastic Epoxy : UL94V-O rate flame retardant Lead : Lead formed for Surface mount Polarity : Color band denotes cathode end Mounting position
Datasheet Details
SMAFL5938, SMAFL5913
LGE
1.49 MB
Silicon zener diodes.
This datasheet PDF includes multiple part numbers: SMAFL5938, SMAFL5913.
Please refer to the document for exact specifications by model.
