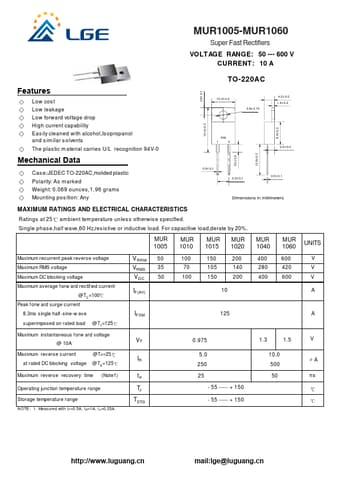

MUR1005-MUR1060
Super Fast Rectifiers
VOLTAGE RANGE: 50 --- 600 V CURRENT: 10 A
Features
Low cost Low leakage Low forward voltage drop High current capability Eas ily cleaned with alcohol,Is opropanol and s im ilar s olvents The plas tic m aterial carries U/L recognition 94V-0
Mechanical Data
Cas e:JEDEC TO-220AC,molded plastic Polarity: As marked Weight: 0.069 ounces,1.96 grams Mounting pos ition: Any
2.8± 0.1
TO-220AC
10.2± 0.2
3.8± 0.15
4.5± 0.2 1.4± 0.2
3.5± 0.3 13.8± 0.5
8.9± 0.2
19.0± 0.5
PIN 12
2.6± 0.2
0.9± 0.1
5.0± 0.1
0.5± 0.1
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 am bient tem perature unles s otherwis e s pecified. Single phas e,half wave,60 Hz,res is tive or inductive load. For capacitive load,derate by 20%.
MUR1015 Datasheet
