KBL406, KBL401 - Silicon Bridge Rectifiers

Datasheet Details

Part number	KBL406, KBL401
Manufacturer	LGE
File Size	161.67 KB
Description	Silicon Bridge Rectifiers
Datasheet	KBL401-LGE.pdf
Note	This datasheet PDF includes multiple part numbers: KBL406, KBL401. Please refer to the document for exact specifications by model.

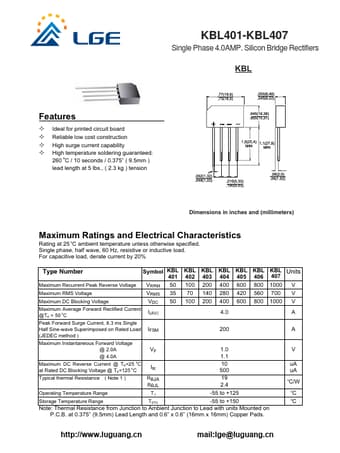

Ideal for printed circuit board Reliable low cost construction High surge current capability High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20% Type Number Symbol KBL KBL KB.
