GZF68C, GZF3V6C (GZF3V6C - GZF91C) Zener Diodes

GZF68C Description

GZF3V6C-GZF91C Zener Diodes VZ : 3.6 * 91 V 800 mW POWER DISSIPATION: .

GZF68C Features

* ¡ó ¡ó ¡ó ¡ó Silicon planar power zener diodes. Low leakage current Low profile surface mount package. High temperature soldering: 260¡æ /10 sec. at terminals. 1.4± 0.15 0.6 1.9± 0.1 SOD-123FL Cathode Band Top View 2.8 0.1 0.10-0.30 0.25 3.7 0.2 Mechanical Data ¡ó ¡ó ¡ó ¡ó ¡ó Case:JEDEC SOD-123FL,m

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GZF68C, GZF3V6C. Please refer to the document for exact specifications by model.

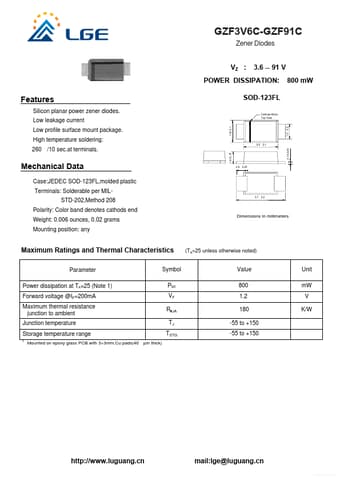

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GZF68C, GZF3V6C
Manufacturer
LGE
File Size
197.47 KB
Datasheet
GZF3V6C_LGE.pdf
Description
(GZF3V6C - GZF91C) Zener Diodes
Note
This datasheet PDF includes multiple part numbers: GZF68C, GZF3V6C.
Please refer to the document for exact specifications by model.
