FR302G, FR301G - Glass Passivated Fast Recovery Rectifiers

Name: FR302G
SKU: FR302G-991934

LGE

The FR302G by LGE is a Glass Passivated Fast Recovery Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	FR302G, FR301G
Manufacturer	LGE
File Size	150.12 KB
Description	Glass Passivated Fast Recovery Rectifiers
Datasheet	FR301G-LGE.pdf
Note	This datasheet PDF includes multiple part numbers: FR302G, FR301G. Please refer to the document for exact specifications by model.

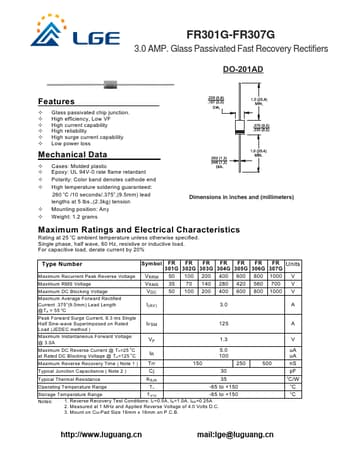

Additional preview pages of the FR302G datasheet.

Glass passivated chip junction. High efficiency, Low VF High current capability High reliability High surge current capability Low power loss Mechanical Data Cases: Molded plastic Epoxy: UL 94V-0 rate flame retardant Polarity: Color band denotes cathode end High temperature soldering guaranteed: 260 oC /10 seconds/.375”,(9.5mm) lead lengths at 5 lbs. ,(2.3kg) tension Mounting position: Any Weight: 1.2 grams Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Ra.
