DBS104G - Glass Passivated Bridge Rectifiers

Product Overview

LGE

Part number	DBS104G
Manufacturer	LGE
File Size	211.51 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	DBS104G Datasheet
Note	This datasheet PDF includes multiple part numbers: DBS104G, DBS101G. Please refer to the document for exact specifications by model.

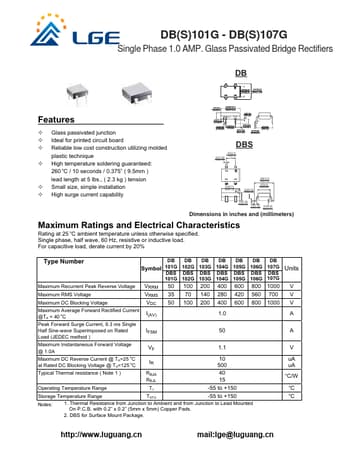

Additional preview pages of the DBS104G datasheet.

Glass passivated junction Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique High temperature soldering guaranteed: 260 oC / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation High surge current capability DBS .047(1.20) .040(1.02) .205(5.2) .195(5.0) .335(8.51) .320(8.13) 450 .013(0.33) .0088(0.22) .404(10.3) .386(9.80) .255(6.5) .245(6.2) .130(3.30) .120(3.05) .060(1.53) .040(1.02) .01.
