Download the BZD27C56P datasheet PDF.
This datasheet also covers the BZD27C3V6P variant, as both devices belong to the same voltage regulator diodes family and are provided as variant models within a single manufacturer datasheet.

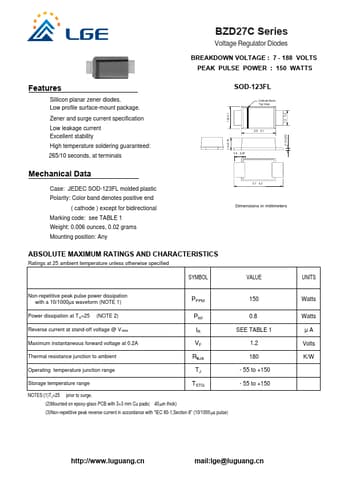

Features
- Sillicon planar zener diodes. Low profile surface-mount package. Zener and surge current specification Low leakage current Excellent stability High temperature soldering guaranteed: 265/10 seconds, at terminals
1.4± 0.15
1.9± 0.1
SOD-123FL
Cathode Band Top View
2.8 0.1
0.6 0.25
0.10-0.30
Mechanical Data
Case: JEDEC SOD-123FL molded plastic Polarity: Color band denotes positive end
( cathode ) except for bidirectional Marking code: see TABLE 1 Weight: 0.006 ounces, 0.02 grams Mounting positi.
BZD27C56P Datasheet
