3KP5.0 Datasheet PDF (3000W Transient Voltage Suppressors)

3KP5.0 - 3000W Transient Voltage Suppressors

Features

! Glass Passivated Die Construction ! 3000W Peak Pulse Power Dissipation ! 5.0V.
170V Standoff Voltage ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case: JEDEC P-600 Molded Plastic ! Terminals: Axial Leads, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Unidirectional.
Device Code and Cathode.

Datasheet Details

Part number	3KP5.0
Manufacturer	LGE
File Size	169.51 KB
Description	3000W Transient Voltage Suppressors
Datasheet	3KP5.0 Datasheet

📁 Similar Datasheet

3KP5.0 - TRANSIENT VOLTAGE SUPPRESSORS (Dc Components)

3KP5.0 - 3000 Watt Axial Lead TVS (GW)

3KP5.0 - UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (LITE-ON)

3KP5.0 - Axial Lead Transient Voltage Suppressors (SOCAY)

3KP5.0 - Transient Voltage Suppressors (HITANO)

3KP5.0 - TRANSIENT VOLTAGE SUPPRESSORS (Rectron)

3KP5.0 - TRANSIENT VOLTAGE SUPPRESSOR (SAMYANG)

3KP5.0 - 3000W TRANSIENT VOLTAGE SUPPRESSOR (WON-TOP)

3KP5.0A - TRANSIENT VOLTAGE SUPPRESSORS (Dc Components)

3KP5.0A - 3000 Watt Axial Lead TVS (GW)

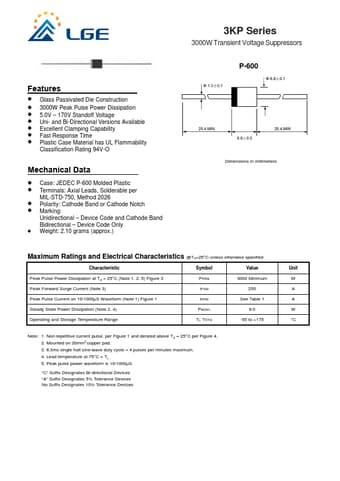

Full PDF Text Transcription

Click to expand full text

Features ! Glass Passivated Die Construction ! 3000W Peak Pulse Power Dissipation ! 5.0V – 170V Standoff Voltage ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case: JEDEC P-600 Molded Plastic ! Terminals: Axial Leads, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Unidirectional – Device Code and Cathode Band Bidirectional – Device Code Only ! Weight: 2.10 grams (approx.

Published: Nov 24, 2017 |
