LP201WE1-TLA1 WSXGA+ TFT LCD

LP201WE1-TLA1 Description

LP201WE1 Liquid Crystal Display Product Specification Ver.1.0 12.JUNE.2007 1 / 30 LP201WE1 Liquid Crystal Display Product Specification SPECI.
ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFOR.

LP201WE1-TLA1 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 1.0 20.1 inches(511.133mm) diagonal (Aspect ratio 16:10) 453.5(H) x 296.5 (V) x 8.3(D) mm (Typ. ) 0.258mm x 0.258mm 1

📥 Download Datasheet

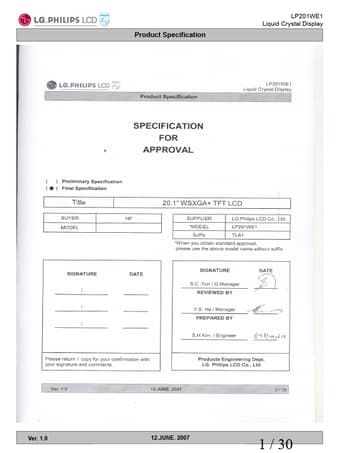

Preview of LP201WE1-TLA1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP201WE1-TLA1
Manufacturer
LG
File Size
1.43 MB
Datasheet
LP201WE1-TLA1-LG.pdf
Description
WSXGA+ TFT LCD
