LP141XB-A1 - Liquid Crystal Display

📥 Download Datasheet

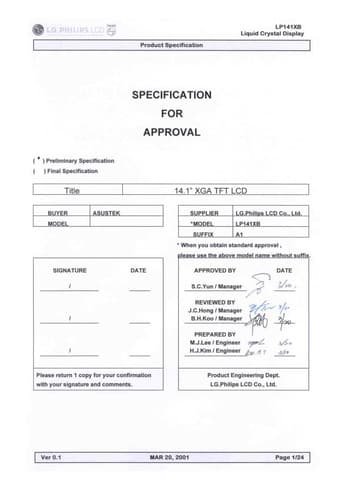

LP141XB-A1 Datasheet Preview — Preview of LP141XB-A1 PDF

Datasheet Details

Part number	LP141XB-A1
Manufacturer	LG
File Size	339.73 KB
Description	Liquid Crystal Display
Datasheet	LP141XB-A1_LG.pdf

LP141XB-A1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX A-1 A-2 A-3 A-4 OPTICAL CHARACTERISTIC MEASUREMENT EQUIPMENT AND METHOD LUMINANCE RESPONSE TIME VIEWING ANGLE 23 23 23 24 www.DataSheet.net/

Features

Active screen size Outline dimensions Pixel pitch Pixel format Color depth Luminance,White Power Consumption Weight Display operating mode Surface treatments 14.1 inches(35.814cm) diagonal 298.5(H) × 227(V) × 5.5(D) mm (Typ. ) 0.279 mm × 0.279 mm 1024 horiz. by 768 vert. pixels RGB stripe arrangement 6-bit, 262,144 colors 2 170 cd/m (Typ. ) Total 4.65Watt(Typ. ) 485g (Typ. ) Transmissive mode, normally white Hard coating (3H), Anti-glare treatment of the front polarizer Ver 0.1 MAR 20, 2001 Page.
