LP101WH1-TLA1 LCD

LP101WH1-TLA1 Description

www.DataSheet.co.kr LP101WH1 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( * ) Preliminary Specification ( ) Final.
ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTION LVDS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING SPE.

LP101WH1-TLA1 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply Ver. 0.2 10.1 inches diagonal 235(H) × 143(V) × .5.2(D,Max. ) [mm] 0.16305mm × 0.16305 mm 1366 horiz. By 768 vert. Pixels RGB strip

LP101WH1-TLA1 Applications

* where thin thickness, low power are critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP101WH1 characteristics provide an excellent flat display for office automation products such as Notebook PC. EDID BLOCK POWER BLOCK 1 GIP(Gat

📥 Download Datasheet

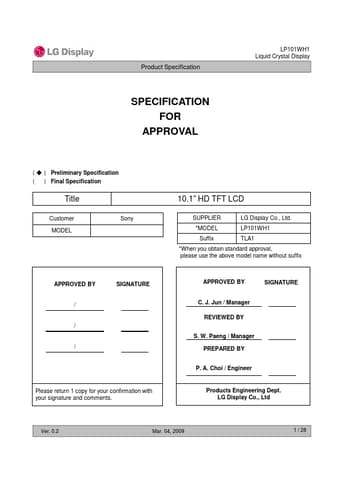

Preview of LP101WH1-TLA1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP101WH1-TLA1
Manufacturer
LG
File Size
733.03 KB
Datasheet
LP101WH1-TLA1_LG.pdf
Description
LCD
