LH350H01 - Display Module

Datasheet Details

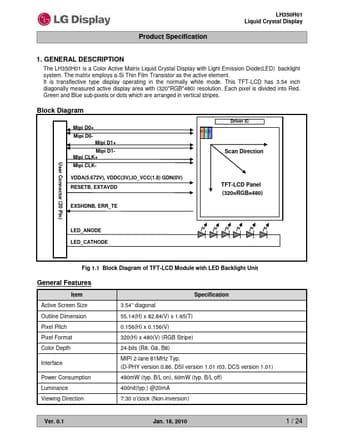

The LH350H01 is a Color Active Matrix Liquid Crystal Display with Light Emission Diode(LED) backlight system. RGB 480) resolution.

Item Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Interface Power Consumption Luminance Viewing Direction 3.54” diagonal 55.14(H) x 82.84(V) x 1.65(T) 0.156(H) x 0.156(V) 320(H) x 480(V) (RGB Stripe) 24-bits (R8, G8, B8) MIPI 2-lane 81MHz Typ. (D-PHY version 0.86, DSI version 1.01 r03, DCS version 1.01) 490mW (typ. B/L on), 60mW (typ. B/L off) 400nit(typ. ) @20mA 7:30 o’clock (Non-inversion) Specification Ver. 0.1 Jan. 18, 2010 1 / 24 LH350H01 Liquid Crystal Displ.
