LD550DUN-ZMA3 - WUXGA TFT LCD

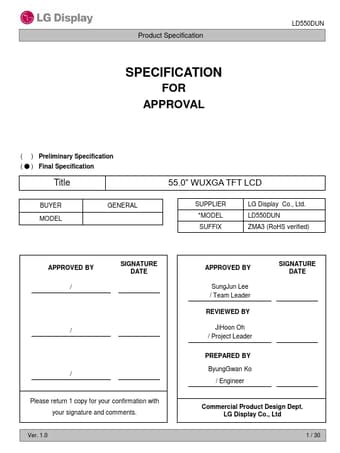

The LD550DUN-ZMA3 by LG is a WUXGA TFT LCD. Below is the official datasheet preview.

LD550DUN-ZMA3 WUXGA TFT LCD by LG - Datasheet Preview — Official preview page of the **LD550DUN-ZMA3** WUXGA TFT LCD datasheet (LG).

Datasheet Details

Part number	LD550DUN-ZMA3
Manufacturer	LG
File Size	1.23 MB
Description	WUXGA TFT LCD
Datasheet	LD550DUN-ZMA3-LG.pdf
Additional preview pages of the LD550DUN-ZMA3 datasheet.

LD550DUN-ZMA3 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY ENVIRONMENT PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Display Mode Color Depth Interface Luminance, White BLU Type Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Possible Display Type Ver. 1.0 54.64 inches(1387.80mm) diagonal 1213.4(H) x 684.2(V) x 39.2(B) (Typ. ) 57.8mm [mm] 0.630mm X 0.630mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement IPS 10bit(D), 1.07Billon colors LVDS 2port 700 cd/m2 (Center 1point ,Typ. ) Direct type Viewing angle free (R/.
