LC430DUY-SHA1 - WUXGA TFT LCD

📥 Download Datasheet

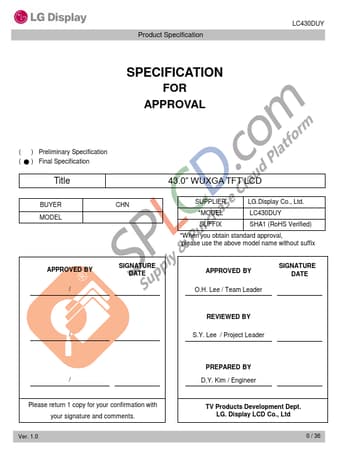

LC430DUY-SHA1 Datasheet Preview — Preview of LC430DUY-SHA1 PDF

Datasheet Details

Part number	LC430DUY-SHA1
Manufacturer	LG
File Size	1.91 MB
Description	WUXGA TFT LCD
Datasheet	LC430DUY-SHA1-LG.pdf

LC430DUY-SHA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS INTARA INTERFACE SIGNAL SPECIFICATION COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS MECHANICAL DIMENSION BOARD ASSEMBLY DIMENSION CONTROL BOARD ASSEMBLY DIMMENSION RELIABILITY INTERNATIONAL STANDARDS SAFETY ENVIRONMENT PACKING PACKING FORM PRECAUTIONS ASSEMBLY PRECAUTIONS OPERATING PRECAUTIONS ELECTROST

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Drive IC Data Interface Viewing Angle (CR>10) Weight Display Mode Surface Treatment (Top) Ver. 1.0 42.51 inches(1,079.75 mm) diagonal 953.0(H) x 543.0 (V) x 1.4 mm(D) (Typ. ) 0.4902 mm x 0.4902 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8-bit, 16.7 M colors Source D-IC : 8-bit EPI, gamma reference voltage, and control signals Gate D-IC : Gate In Panel Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) 1.
