LC320EUA-PFF1 - WUXGA TFT LCD

📥 Download Datasheet

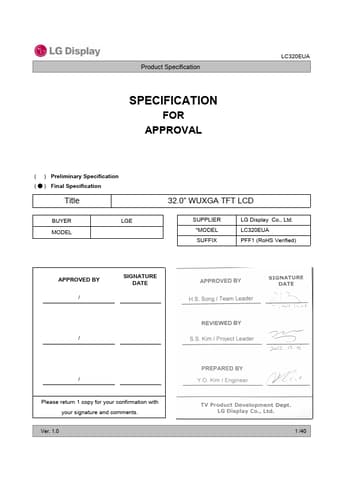

LC320EUA-PFF1 Datasheet Preview — Preview of LC320EUA-PFF1 PDF

Datasheet Details

Part number	LC320EUA-PFF1
Manufacturer	LG
File Size	949.67 KB
Description	WUXGA TFT LCD
Datasheet	LC320EUA-PFF1-LG.pdf

LC320EUA-PFF1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS PANEL PIXEL STRUCTURE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE OPERAGING CONDITION GUIDE Ver.1.0 LC320EUA P

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Drive IC Data Interface Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver. 1.0 LED Driver H Local Dimming : 4Block 31.55 inches(801.31mm) diagonal 715.8 (H) × 416.33(V) X 9.7(B)/21.9 mm(D) (Typ. ) 0.36375 mm x 0.36375 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8-bit, 16.7 M colors (※ 1.06B colors @ 10 bit (D) System Output ) Source D-IC : 8-bit EPI, gamma.
