LB035Q02-TD01 TFT LCD Module

Interface [ Input Terminal] Absolute Maximum Ratings Electrical Characteristics Touch Screen Panel Specifications Optical Characteristics Mechanical Characteristics Operation Specifications Power On/Off Sequence Reliability Test Outline Dimension Packing Precautions Production Center Page 3 4 6 10 .

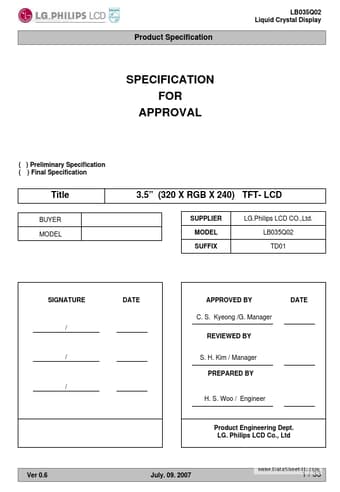

www.DataSheet4U.com LB035Q02 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification (¡Ü ) Final Specification Title BUYER MODEL 3.5” (320 X RGB X 240) TFT- LCD SUPPLIER MODEL SUFFIX LG.Philips LCD CO.,Ltd. LB035Q02 TD01 SIGNATURE DATE APPROVED BY C. S. Kyeong /G. Manager DATE / REVIEWED BY / S. H. Kim / Manager PREPARED BY / H. S. Woo / Engineer Product Engineering Dept. LG. Philips LCD Co., Ltd Ver 0.6 July. 09. 2007 1 / 33 www.Da.

LB035Q02-TD01 Features

* PARAMETER SPECIFICATION 3.5 inches 76.9[H] x 63.9[V] x 3.15t[D] (4.25t with Touch Panel) 70.08[H] x 52.56[V] 320[H] x RGB x 240[V] 0.073 x 0.219 Stripe type TN / Transmissive / Normally White Pseudo-16.7M 6 o’clock RGB Vertical Stripe Digital RGB + SPI Interface 41g 6 LEDs REMARK Diagonal [mm] [mm
