PT5C051V - ESD

PT5C051V Datasheet Preview — Preview of PT5C051V PDF

Datasheet Details

Part number	PT5C051V
Manufacturer	LFC semi
File Size	378.69 KB
Description	ESD
Datasheet	PT5C051V-LFCsemi.pdf

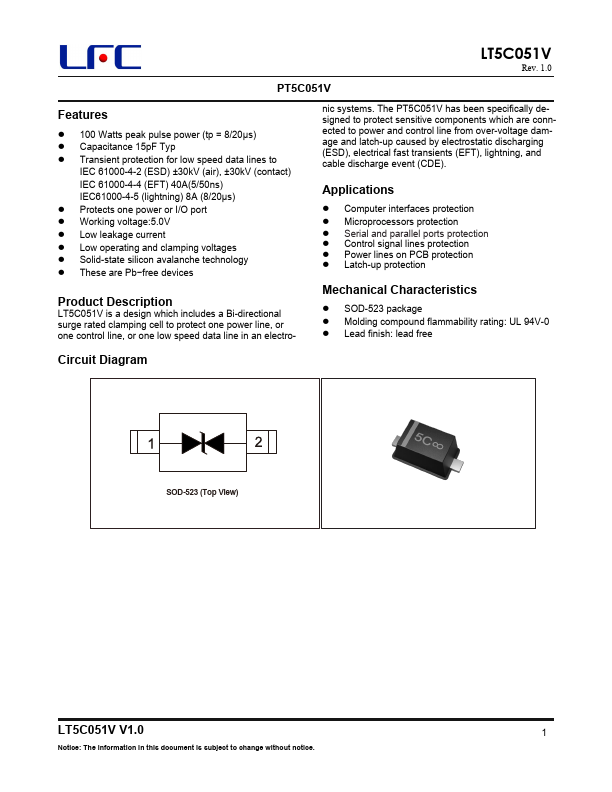

PT5C051V Product details

Description

LT5C051V is a design which includes a Bi-directional surge rated clamping cell to protect one power line, or one control line, or one low speed data line in an electro- nic systems.The PT5C051V has been specifically designed to protect sensitive components which are connected to power and control line from over-voltage damage and latch-up caused by electrostatic discharging (ESD), electrical fast transients (EFT), lightning, and cable discharge event (CDE).Applications Computer interfac

Features

100 Watts peak pulse power (tp = 8/20μs).
Capacitance 15pF Typ.
Transient protection for low speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC 61000-4-4 (EFT) 40A(5/50ns) IEC61000-4-5 (lightning) 8A (8/20µs).
Protects one power or I/O port.
Working voltage:5.0V.
Low leakage current.
Low operating and clamping voltages.
Solid-state silicon avalanche technology.
These are Pb.
free devices Product.
