LO209A - Low Power EMI Reduction Oscillator

The LO209A by LFC semi is a Low Power EMI Reduction Oscillator. Below is the official datasheet preview.

📥 Download Datasheet

LO209A Low Power EMI Reduction Oscillator by LFC semi - Datasheet Preview — Official preview page of the LO209A Low Power EMI Reduction Oscillator datasheet (LFC semi).

Datasheet Details

Part number	LO209A
Manufacturer	LFC semi
File Size	386.85 KB
Description	Low Power EMI Reduction Oscillator
Datasheet	LO209A-LFCsemi.pdf

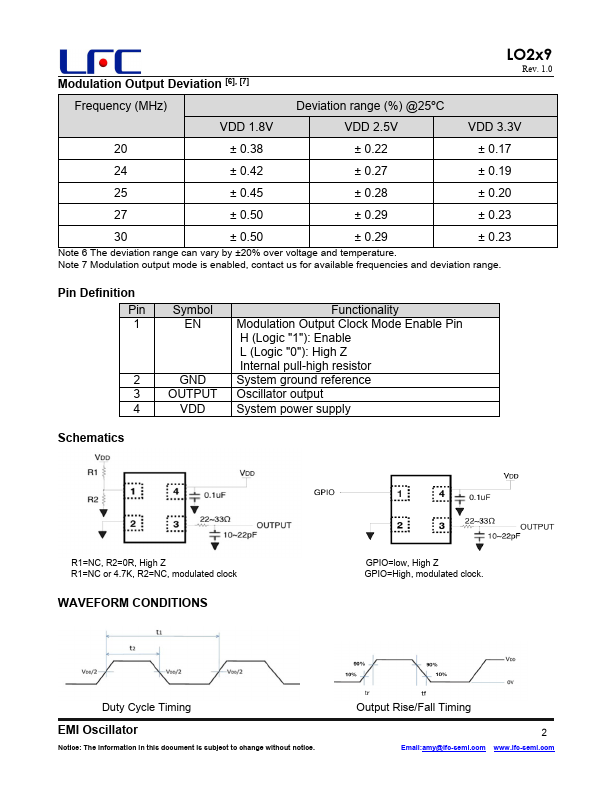

Additional preview pages of the LO209A datasheet.

LO209A Product details

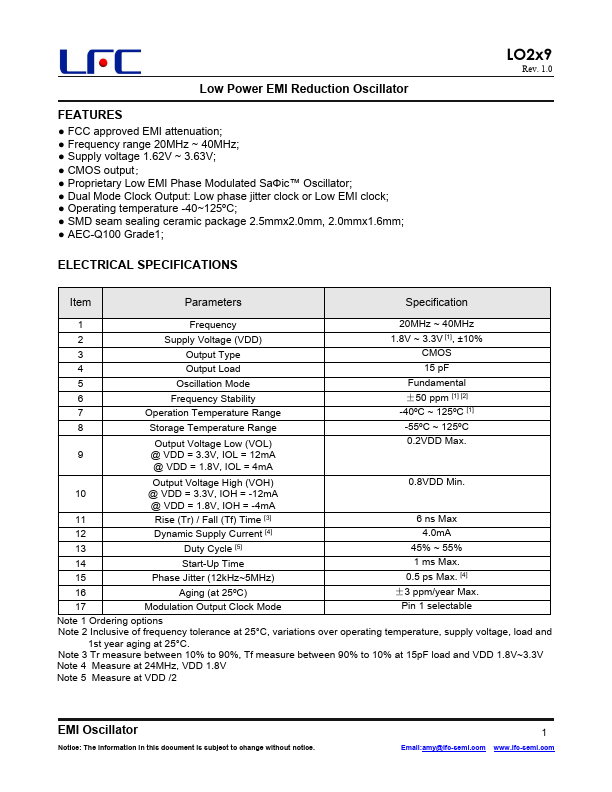

Features

FCC approved EMI attenuation;.
Frequency range 20MHz ~ 40MHz;.
Supply voltage 1.62V ~ 3.63V;.
CMOS output;.
Proprietary Low EMI Phase Modulated SaΦic™ Oscillator;.
Dual Mode Clock Output: Low phase jitter clock or Low EMI clock;.
Operating temperature -40~125ºC;.

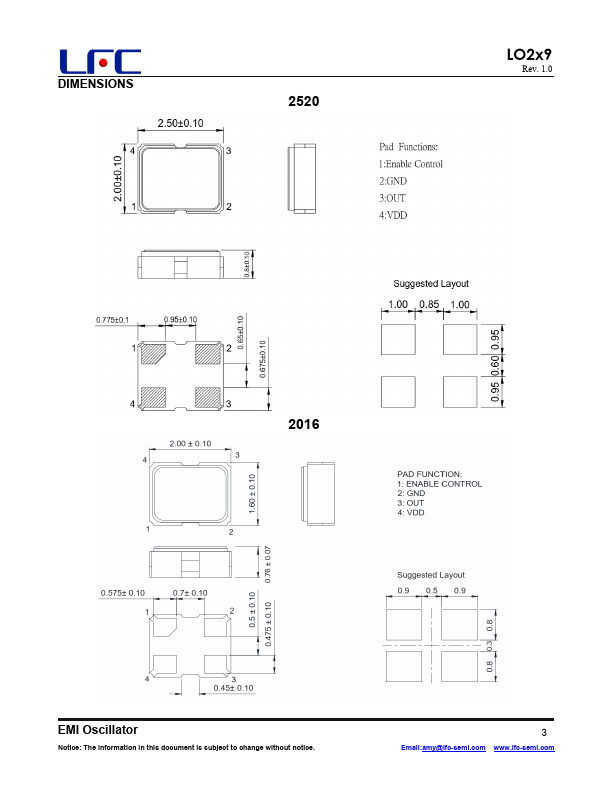

SMD seam sealing ceramic package 2.5mmx2.0mm, 2.0mmx1.6mm;.
AEC-Q100 Grade1;.
