LMP3415ZF - 20V P-Channel Enhancement MOSFET

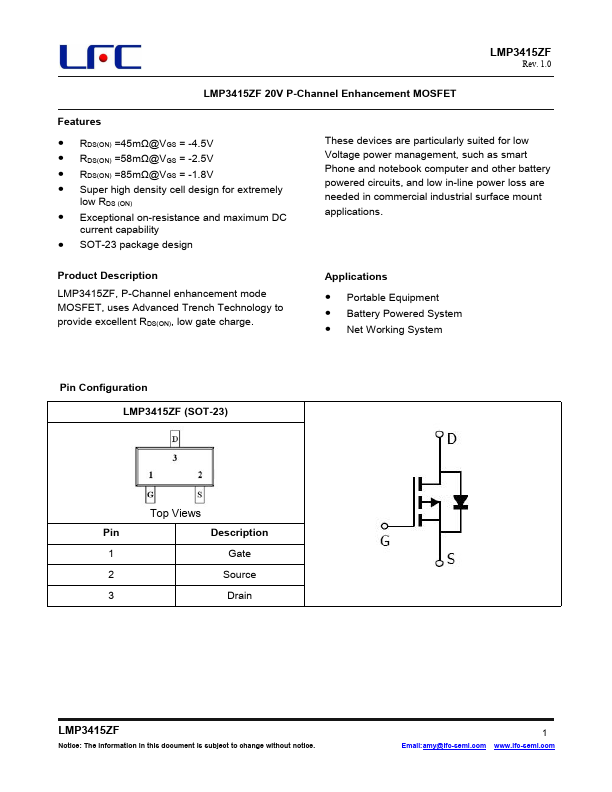

The LMP3415ZF by LFC semi is a 20V P-Channel Enhancement MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMP3415ZF
Manufacturer	LFC semi
File Size	739.26 KB
Description	20V P-Channel Enhancement MOSFET
Datasheet	LMP3415ZF-LFCsemi.pdf

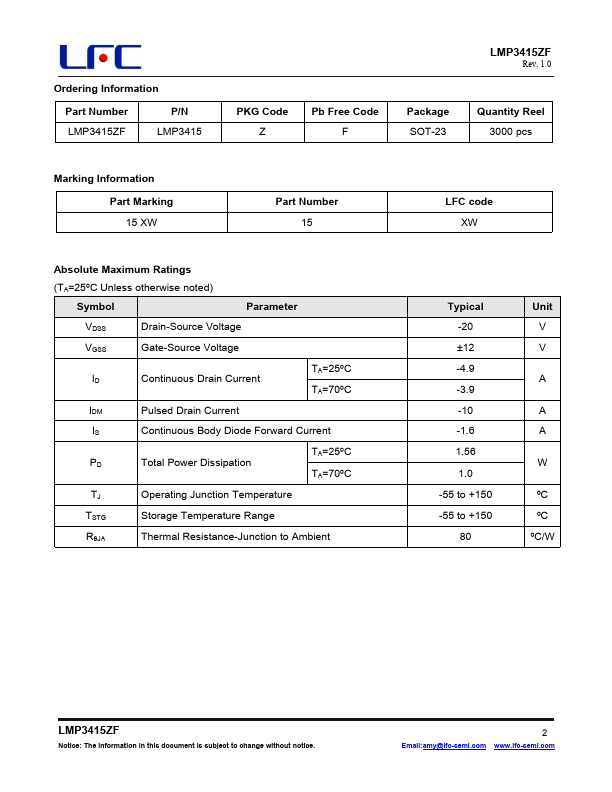

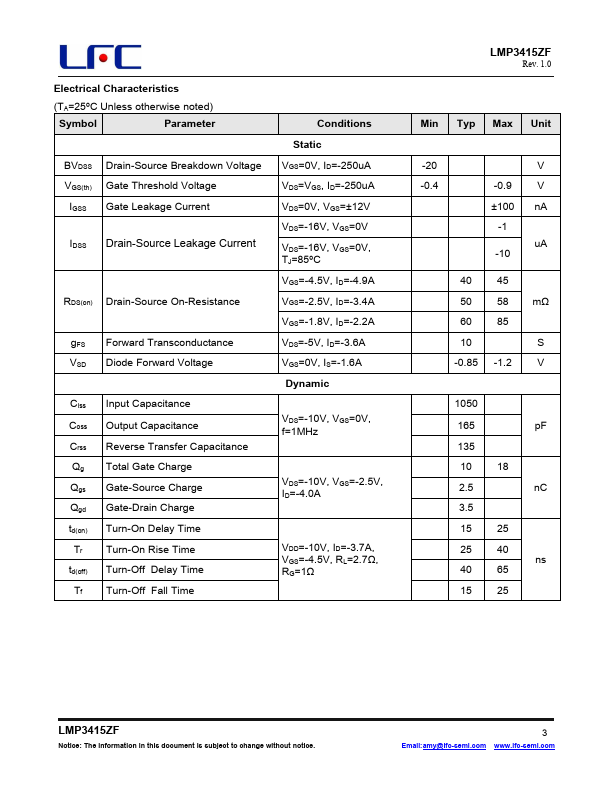

Additional preview pages of the LMP3415ZF datasheet.

LMP3415ZF Product details

Description

LMP3415ZF, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Portable Equipment Battery Powered System Net Working System Pin Configuration LMP3415ZF (SOT-23) Top Views Pin Description 1 Gate 2 Source 3 Drain LMP3415ZF Notice: The information in this document is subject to change without notice.1 Email:amy@lfc-semi.com www.lfc-semi.com Ordering Information Part Number LMP3415ZF P/N LMP

Features

RDS(ON) =45mΩ@VGS = -4.5V.
RDS(ON) =58mΩ@VGS = -2.5V.
RDS(ON) =85mΩ@VGS = -1.8V.
Super high density cell design for extremely low RDS (ON).
Exceptional on-resistance and maximum DC current capability.
SOT-23 package design These devices are particularly suited for low Voltage power management, such as smart Phone and notebook computer and other battery powered circuits, and low in-line power loss are needed in commercial industrial surface mount.
