LMP3335XF - 30V P-Channel MOSFET

The LMP3335XF by LFC semi is a 30V P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

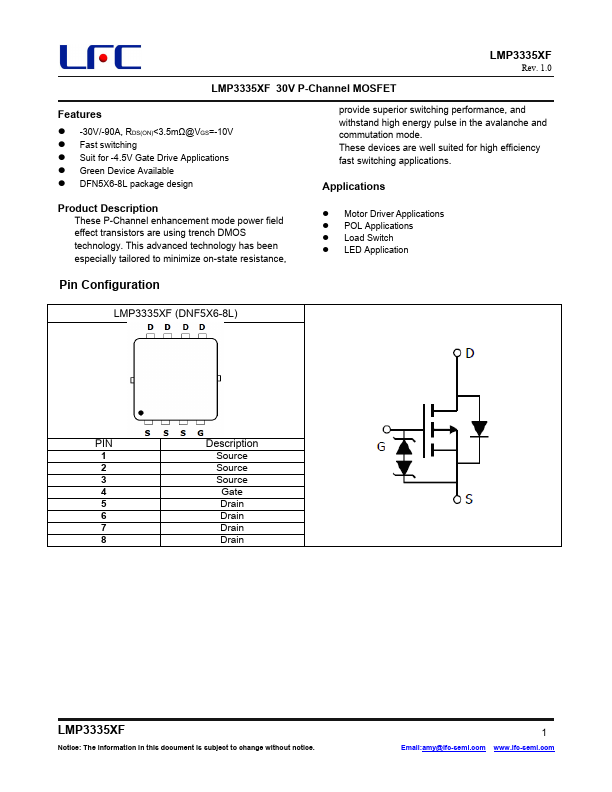

Official preview page of the LMP3335XF 30V P-Channel MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMP3335XF
Manufacturer LFC semi
File Size 482.42 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet LMP3335XF-LFCsemi.pdf
Additional preview pages of the LMP3335XF datasheet.

LMP3335XF Product details

Description

These P-Channel enhancement mode power field effect transistors are using trench DMOS technology. Motor Driver Applications POL Applications Load Switch LED Application Pin Configuration LMP3335XF (DNF5X6-8L) PIN Description 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain LMP3335XF Notice: The information in this document is subject to change with

Features
