LMP3153SF - 30V P-Channel Enhancement Mode MOSFET

The LMP3153SF by LFC semi is a 30V P-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

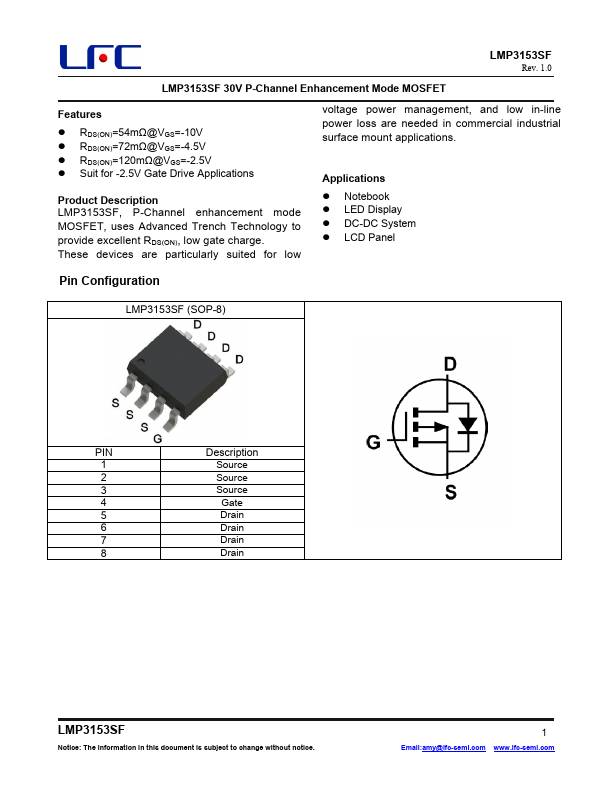

Official preview page of the LMP3153SF 30V P-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMP3153SF
Manufacturer LFC semi
File Size 653.03 KB
Description 30V P-Channel Enhancement Mode MOSFET
Datasheet download datasheet LMP3153SF-LFCsemi.pdf

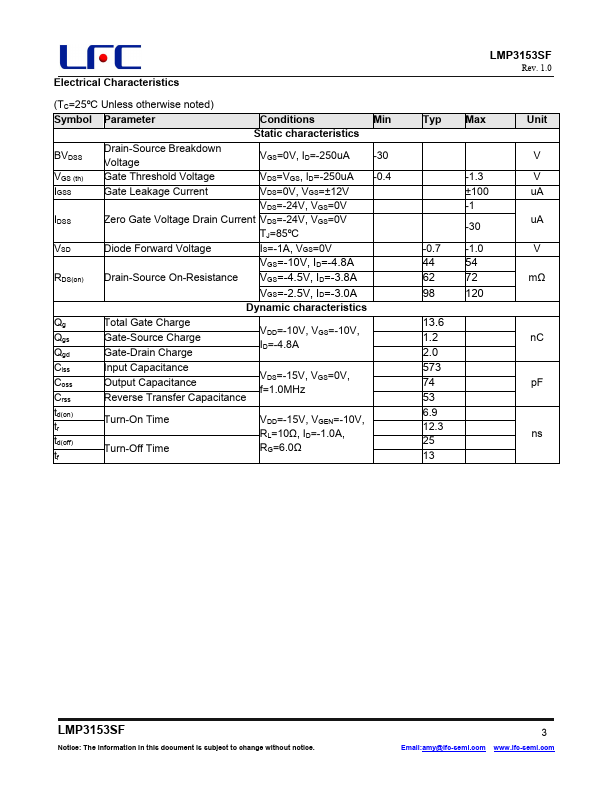

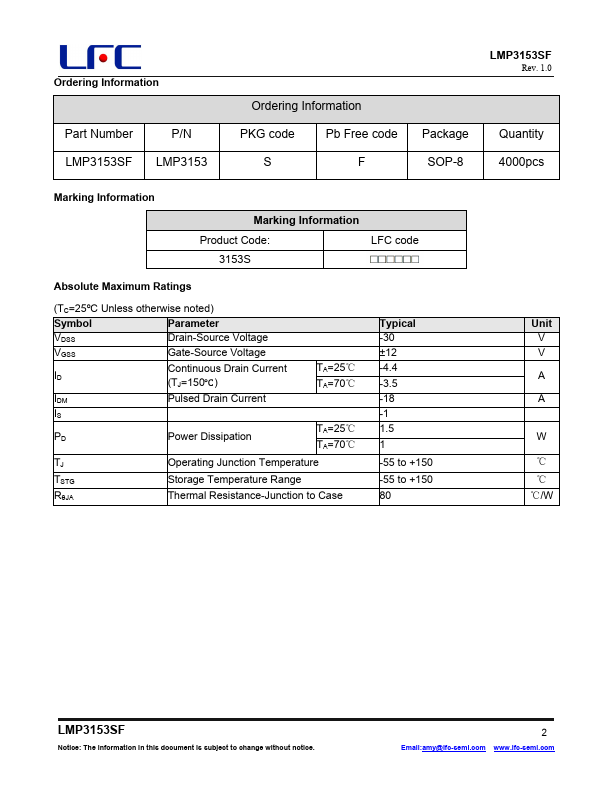

Additional preview pages of the LMP3153SF datasheet.

LMP3153SF Product details

Description

LMP3153SF, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Notebook LED Display DC-DC System LCD Panel Pin Configuration LMP3153SF (SOP-8) PIN Description 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8

Features
