SC5-S-DC6V, SC5-S-DC12V PCB Power Relay

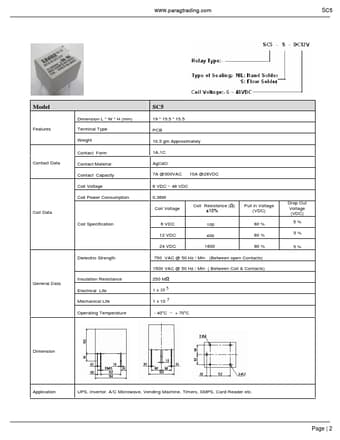

SC5-S-DC6V Description

Confidential www.paragtrading.com SC5 Model Dimension L * W * H (mm) SC5 19 * 15.5 * 15.5 .

SC5-S-DC6V Features

* Terminal Type PCB Weight 10.5 gm Approximately Contact Form 1A,1C Contact Data Contact Material AgCdO Contact Capacity 7A @300VAC 10A @28VDC Coil Voltage 6 VDC ~ 48 VDC Coil Power Consumption 0.36W Coil Data Coil Specification Coil Voltage Coil Resistance (Ù) ±10% Pull in Voltage

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SC5-S-DC6V, SC5-S-DC12V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
SC5-S-DC6V, SC5-S-DC12V
Manufacturer
LEONE
File Size
127.94 KB
Datasheet
SC5-S-DC12V-LEONE.pdf
Description
PCB Power Relay
Note
This datasheet PDF includes multiple part numbers: SC5-S-DC6V, SC5-S-DC12V.
Please refer to the document for exact specifications by model.
