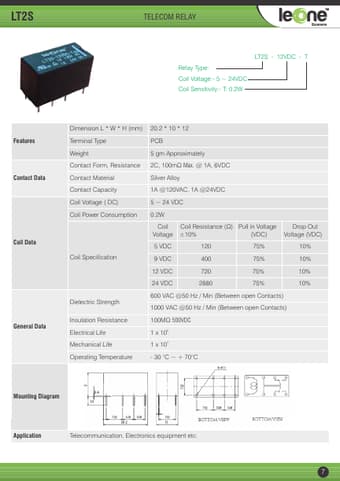

LT2S-5VDC-T, LT2S-12VDC-T - TELECOM RELAY

LEONE

Datasheet Details

Part number	LT2S-5VDC-T, LT2S-12VDC-T
Manufacturer	LEONE
File Size	91.83 KB
Description	TELECOM RELAY
Datasheet	LT2S-12VDC-T-LEONE.pdf
Note	This datasheet PDF includes multiple part numbers: LT2S-5VDC-T, LT2S-12VDC-T. Please refer to the document for exact specifications by model.

Terminal Type Weight Contact Form, Resistance Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption 20.2.
10.
12 PCB 5 gm Approximately 2C, 100mΩ Max. @ 1A, 6VDC Silver Alloy 1A @120VAC, 1A @24VDC 5 ~ 24 VDC 0.2W Coil Voltage Coil Resistance (Ω) Pull in Voltage ±10% (VDC) 120 400 720 2880 75% 75% 75% 75% Drop Out Voltage (VDC) 10% 10% 10% 10% Coil Data Coil Specification 5 VDC 9 VDC 12 VDC 24 VDC Dielectric Strength Insulation Resistance Electrical.
