LST1-DC12V-S, LST1-DC5V-S - TELECOM RELAY

Name: LST1-DC12V-S
SKU: LST1-DC12V-S-850123

LEONE

The LST1-DC12V-S by LEONE is a TELECOM RELAY. Below is the official datasheet preview.

Datasheet Details

Part number	LST1-DC12V-S, LST1-DC5V-S
Manufacturer	LEONE
File Size	87.97 KB
Description	TELECOM RELAY
Datasheet	LST1-DC5V-S-LEONE.pdf
Note	This datasheet PDF includes multiple part numbers: LST1-DC12V-S, LST1-DC5V-S. Please refer to the document for exact specifications by model.

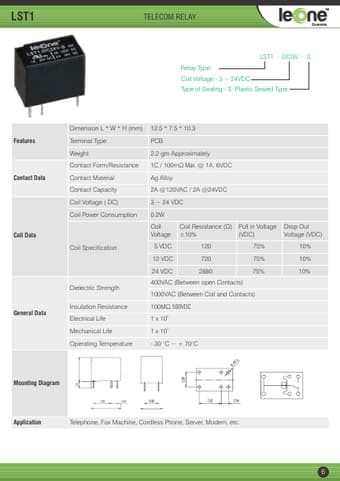

Additional preview pages of the LST1-DC12V-S datasheet.

Terminal Type Weight Contact Form/Resistance Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption Coil Data Coil Specification 12.5.
7.5.
10.3 PCB 2.2 gm Approximately 1C / 100mΩ Max. @ 1A, 6VDC Ag Alloy 2A @120VAC / 2A @24VDC 3 ~ 24 VDC 0.2W Coil Voltage 5 VDC 12 VDC 24 VDC Coil Resistance (Ω) Pull in Voltage ±10% (VDC) 120 720 2880 75% 75% 75% Drop Out Voltage (VDC) 10% 10% 10% Dielectric Strength Insulation Resistance Electrical Life Mechanical.
