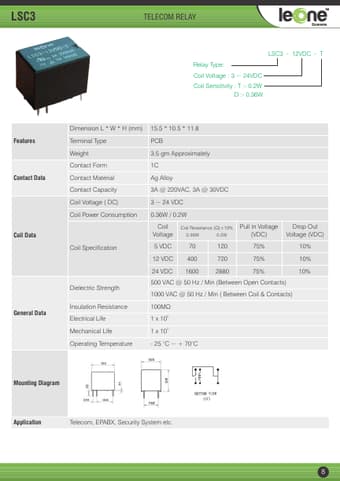

LSC3-5VDC-T, LSC3-12VDC-T - TELECOM RELAY

LEONE

Datasheet Details

Part number	LSC3-5VDC-T, LSC3-12VDC-T
Manufacturer	LEONE
File Size	87.81 KB
Description	TELECOM RELAY
Datasheet	LSC3-12VDC-T-LEONE.pdf
Note	This datasheet PDF includes multiple part numbers: LSC3-5VDC-T, LSC3-12VDC-T. Please refer to the document for exact specifications by model.

Terminal Type Weight Contact Form Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption Coil Data Coil Specification 15.5.
10.5.
11.8 PCB 3.5 gm Approximately 1C Ag Alloy 3A @ 220VAC, 3A @ 30VDC 3 ~ 24 VDC 0.36W / 0.2W Coil Voltage 5 VDC 12 VDC 24 VDC Coil Resistance (Ω)±10% 0.36W 0.2W Pull in Voltage (VDC) 75% 75% 75% Drop Out Voltage (VDC) 10% 10% 10% 70 400 1600 120 720 2880 Dielectric Strength Insulation Resistance Electrical Life Mechanical.
