LK3PNAC12V - PANEL MOUNTING RELAY

Download the LK3PNAC12V datasheet PDF (LK3PNDC12V included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for panel mounting relay.

LEONE

📥 Download Datasheet

Datasheet Details

Part number	LK3PNAC12V
Manufacturer	LEONE
File Size	92.08 KB
Description	PANEL MOUNTING RELAY
Datasheet	LK3PNAC12V Datasheet

📁 Similar Datasheet

LK315D3HA4M - TFT LCD (Sharp)
LK315D3HA54 - TFT LCD (Sharp)
LK315D3HA9K - TFT LCD (Sharp)
LK315D3LA57 - TFT LCD (Sharp)
LK315D3xxxx - TFT LCD (Sharp)
LK315T3HA2M - TFT LCD (Sharp)
LK315T3HA39 - TFT LCD (Sharp)
LK315T3HA48 - TFT LCD (Sharp)
LK315T3HA49 - TFT LCD (Sharp)
LK315T3HB00A - TFT LCD (Sharp)

Other Datasheets by LEONE

LK3PNAC120V - PANEL MOUNTING RELAY
LK3PNAC110V - PANEL MOUNTING RELAY
LK3PNAC220V - PANEL MOUNTING RELAY
LK3PNAC240V - PANEL MOUNTING RELAY
LK3PNAC24V - PANEL MOUNTING RELAY
LK3PNAC48V - PANEL MOUNTING RELAY
LK3PNAC6V - PANEL MOUNTING RELAY
LK3PNDC100V - PANEL MOUNTING RELAY

Full PDF Text Transcription

Click to expand full text

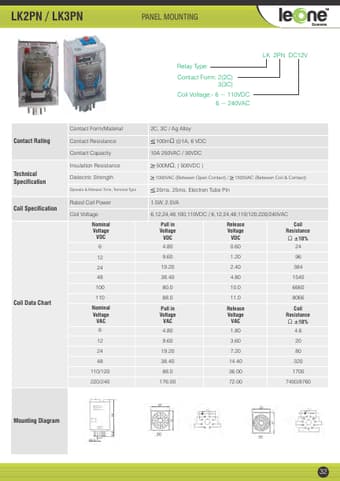

LK2PN / LK3PN PANEL MOUNTING LK 2PN DC12V Relay Type: Contact Form: 2(2C) 3(3C) Coil Voltage:- 6 ~ 110VDC 6 ~ 240VAC Contact Form/Material 2C, 3C / Ag Alloy 100mΩ @1A, 6 VDC 10A 250VAC / 30VDC 500MΩ, ( 500VDC ) 1000VAC (Between Open Contact) / 1500VAC (Between Coil & Contact) Contact Rating Contact Resistance Contact Capacity Insulation Resistance Technical Specification Dielectric Strength Operate & Release Time, Terminal Type 25ms, 25ms, Electron Tube Pin 1.5W, 2.5VA 6,12,24,48,100,110VDC / 6,12,24,48,110/120,220/240VAC Pull in Voltage VDC 4.80 9.60 19.20 38.40 80.0 88.0 Pull in Voltage VAC 4.80 9.60 19.20 38.40 88.0 176.00 Release Voltage VDC 0.60 1.20 2.40 4.80 10.0 11.0 Release Voltage VAC 1.80 3.60 7.20 14.40 36.00 72.
