L90CSDC12V - PCB Relay

LEONE

📥 Download Datasheet

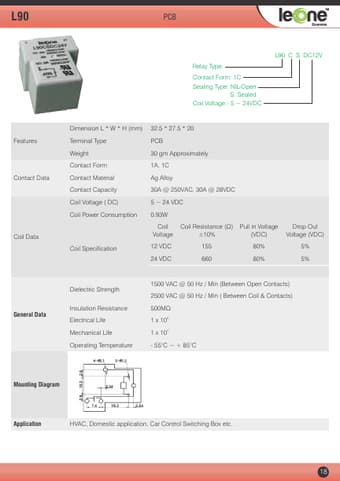

L90CSDC12V Datasheet Preview — Preview of L90CSDC12V PDF

Datasheet Details

Part number	L90CSDC12V
Manufacturer	LEONE
File Size	79.32 KB
Description	PCB Relay
Datasheet	L90CSDC12V-LEONE.pdf

L90CSDC12V Product details

Features

Terminal Type Weight Contact Form Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption 32.5.
27.5.
20 PCB 30 gm Approximately 1A, 1C Ag Alloy 30A @ 250VAC, 30A @ 28VDC 5 ~ 24 VDC 0.93W Coil Voltage Coil Resistance (Ω) ±10% 155 660 Pull in Voltage (VDC) 80% 80% Drop Out Voltage (VDC) 5% 5% Coil Data Coil Specification 12 VDC 24 VDC Dielectric Strength Insulation Resistance Electrical Life Mechanical Life Operating Temperature 1500 VAC @ 50 Hz / M.
