HTFS200-P Current Transducer

HTFS200-P Description

Current Transducer HTFS 200 800-P For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit an.

HTFS200-P Features

* Hall effect measuring principle
* Galvanic separation between primary and secondary circuit
* Low power consumption
* Single power supply +5 V
* Ratiometric offset
* Insulating plastic case recognized according to UL 94-V0
* Fixation by M3 nuts and screws
* TA = ‒40

HTFS200-P Applications

* Forklift drives
* AC variable speed drives
* Static converters for DC motor drives
* Battery supplied applications
* Uninterruptible Power Supplies (UPS)
* Switched Mode Power Supplies (SMPS)
* Power supplies for welding applications. Application domain
* Industrial

📥 Download Datasheet

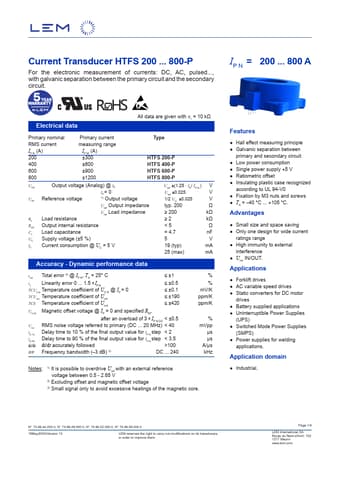

Preview of HTFS200-P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HTFS200-P
Manufacturer
LEM
File Size
2.09 MB
Datasheet
HTFS200-P_LEM.pdf
Description
Current Transducer
