HTB100-TP - Current Transducers HTB 50~400-P and HTB 50~100-TP

LEM

📥 Download Datasheet

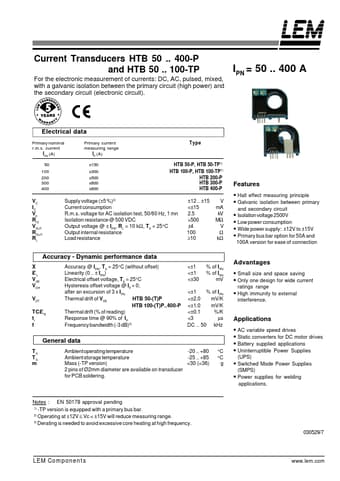

HTB100-TP Datasheet Preview — Preview of HTB100-TP PDF

datasheet Preview Page 2

Datasheet Details

Part number	HTB100-TP
Manufacturer	LEM
File Size	66.52 KB
Description	Current Transducers HTB 50~400-P and HTB 50~100-TP
Datasheet	HTB100-TP_LEM.pdf

HTB100-TP Product details

Features

Hall effect measuring principle.
Galvanic isolation between primary.
Isolation voltage 2500V.
Low power consumption.
Wide power supply: ±12V to ±15V.
Primary bus bar option for 50A and 100A version for ease of connection and secondary circuit VC IC Vd R IS VOUT ROUT RL Supply voltage (±5 %)2) Current consumption R. m. s. voltage for AC isolation test, 50/60 Hz, 1 mn Isolation resistance @ 500 VDC Output voltage @ ± IPN, RL = 10 kΩ, TA = 25°C.
