HO25-NSM Current Transducer

LEM

HO25-NSM Description

Current Transducer HO-NSM series IP N = 8, 15, 25 A Ref: HO 8-NSM, HO 15-NSM, HO 25-NSM For the electronic measurement of current: DC, AC, pulse.

HO25-NSM Features

* Hall effect measuring principle
* Multirange current transducer through PCB pattern lay-out
* Galvanic separation between primary and secondary circuit
* Insulated test voltage 4300 V
* Low power consumption
* Extremely low profile 12 mm
* Single power supply +5 V

HO25-NSM Applications

* AC variable speed drives
* Static converters for DC motor drives
* Battery supplied applications
* Uninterruptible Power Supplies (UPS)
* Switched Mode Power Supplies (SMPS)
* Power supplies for welding applications
* The solar inverter on DC side of the inverter (MPPT)

📥 Download Datasheet

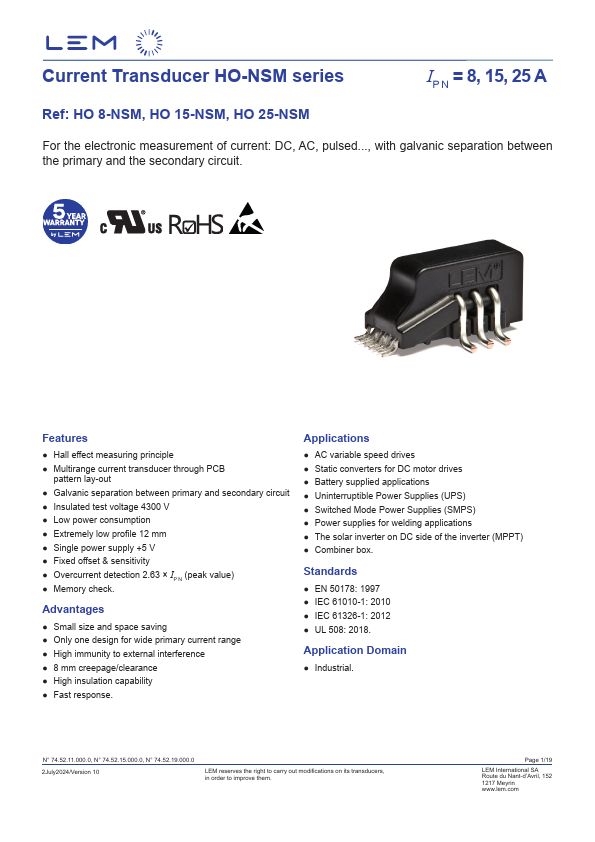

HO25-NSM Datasheet Preview — Preview of HO25-NSM PDF

Datasheet Details

Part number: HO25-NSM
Manufacturer: LEM
File Size: 3.44 MB
Datasheet: HO25-NSM-LEM.pdf
Description: Current Transducer
