HO15-NSM

The HO15-NSM is Current Transducer designed by LEM.

Product Overview

LEM

📥 Download Datasheet

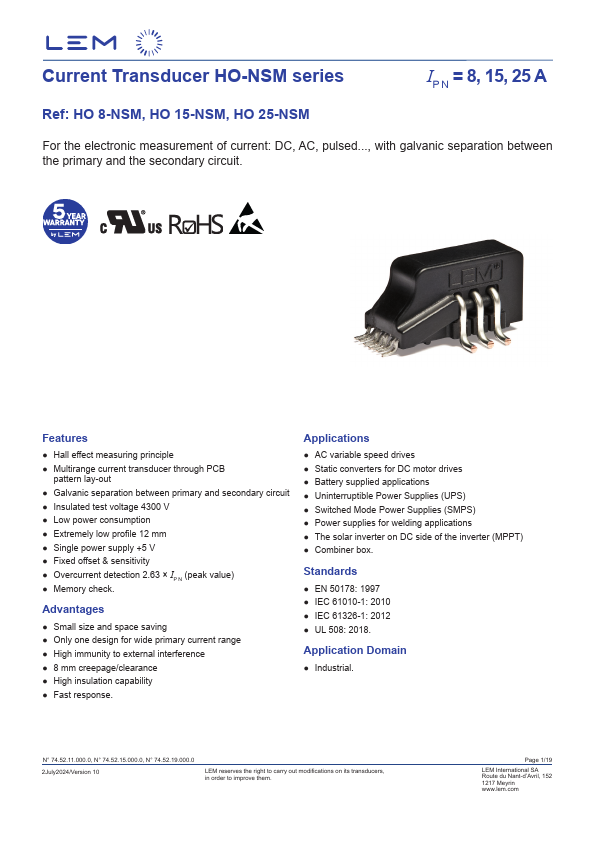

HO15-NSM Current Transducer by LEM - Datasheet Preview — Datasheet preview – HO15-NSM

Datasheet Details

Part number	HO15-NSM
Manufacturer	LEM
File Size	3.44 MB
Description	Current Transducer
Datasheet	HO15-NSM-LEM.pdf

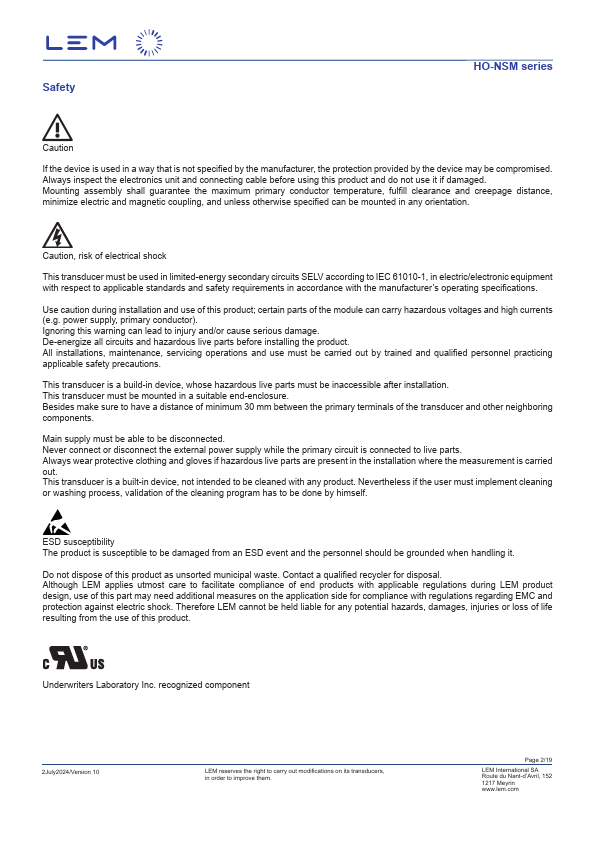

Additional preview pages of the HO15-NSM datasheet.

Product details

Features

Hall effect measuring principle.
Multirange current transducer through PCB pattern lay-out.
Galvanic separation between primary and secondary circuit.
Insulated test voltage 4300 V.
Low power consumption.
Extremely low profile 12 mm.
Single power supply +5 V.
Fixed offset & sensitivity.
Overcurrent detection 2.63 × IP N (peak value).
Memory check. Advantages.
Small size and space saving.
Only one design for wide primary current range.
