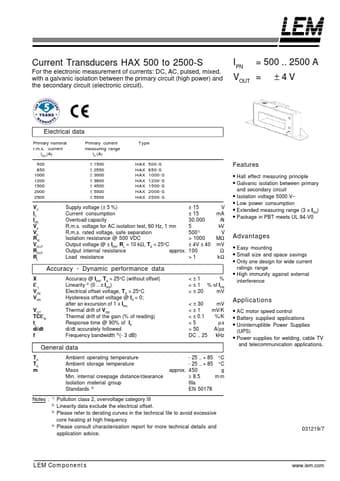

HAX2500-S - Current Transducers HAX 500 to 2500-S

LEM

Datasheet Details

Hall effect measuring principle.
Galvanic isolation between primary.
Isolation voltage 5000 V~.
Low power consumption.
Extended measuring range (3 x IPN).
Package in PBT meets UL 94-V0 and secondary circuit VC IC IOC Vd Vb RIS VOUT ROUT RL Supply voltage (± 5 %) Current consumption Overload capacity R. m. s. voltage for AC isolation test, 60 Hz, 1 mn R. m. s. rated voltage, safe separation Isolation resistance @ 500 VDC Output voltage @ ± IPN,.
