HAC100-S Current Transducer

HAC100-S Description

Current Transducer HAC 100 800-S For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and.

HAC100-S Features

* Hall effect measuring principle
* Insulating plastic case recognized according to UL 94-V0. Advantages
* Low insertion losses
* Easy installation
* Low power consumption UC
* Small size and space saving
* Only one design for wide

HAC100-S Applications

* UC
* AC variable speed drives and servo motor drives
* Static converters for DC motor drivers
* Battery supplied applications
* Uninterruptible Power Supplies (UPS)
* Switched Mode Power Supplies (SMPS)
* Power suppliers for welding application

📥 Download Datasheet

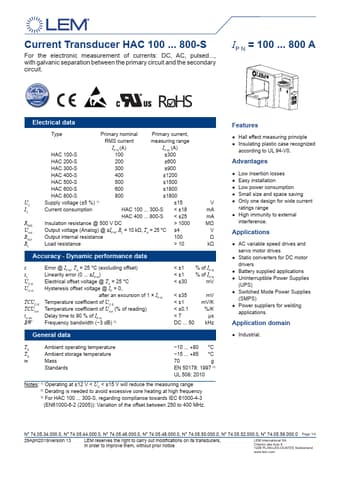

Preview of HAC100-S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HAC100-S
Manufacturer
LEM
File Size
561.28 KB
Datasheet
HAC100-S-LEM.pdf
Description
Current Transducer
