DK-B5 Datasheet (LEM) - DC Current transducer

DK-B5, DC Current transducer

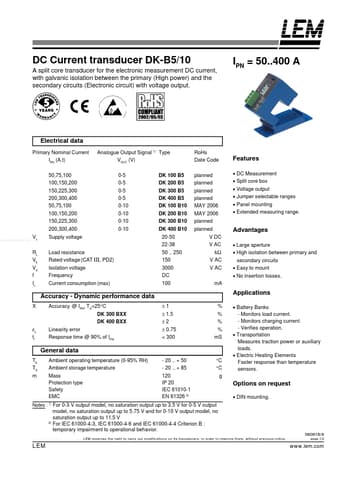

DC Current transducer DK-B5/10 A split core transducer for the electronic measurement DC current, with galvanic isolation between the primary (High power) and the secondary circuits (Electronic circuit) with voltage output.

IPN = 50..400 A Electrical data Primary Nominal Current IPN (A.t) 50,75,100 100,150,200 150,225,300 200,300,400 50,75,100 100,150,200 150,225,300 200,300,400 www.DataSheet4U.com Analogue Output Signal 1) Type VOUT (V) 0-5 0-5 0-5 0-5 0-10 0-10 0-10 0-10 DK 100 B5 DK 200 B5

DK-B5 Features

* DC Measurement

* Split core box

* Voltage output

* Jumper selectable ranges

* Panel mounting

* Extended measuring range. Advantages

* Large aperture

* High isolation between primary and secondary circuits

* Easy to mount
