AP200-B420L - AC Current transducer AP-B420L

Datasheet Summary

Features

  • RMS output.
  • Split core type.
  • Loop powered 4-20mA current output.
  • DIN mounting & Panel mounting.
  • Eliminates insertion loss.
  • Switch selectable ranges AP 50 B420L AP 100 B420L AP 200 B420L AP 400 B420L < 350 +24 5 < 25 Ω V DC kV mA Load resistance Supply voltage (loop powered) R. m. s. voltage for AC isolation test, 50/60Hz, 1 mn Limitation of output current Advantages.
  • Large aperture for cable up to Ø18mm.
  • High isolation bet.

📥 Download Datasheet

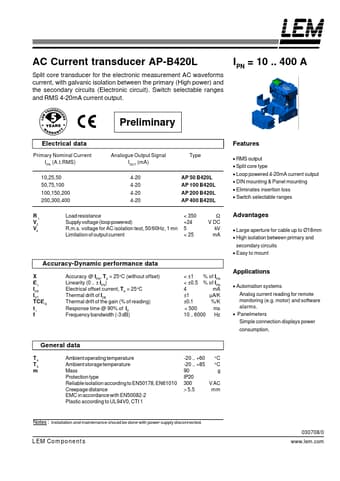

Datasheet preview – AP200-B420L

Datasheet Details

Part number AP200-B420L
Manufacturer LEM
File Size 56.96 KB
Description AC Current transducer AP-B420L
Datasheet download datasheet AP200-B420L Datasheet
Additional preview pages of the AP200-B420L datasheet.

📁 Similar Datasheet

  • AP2000 - Micropower Synchronous Step-Up Converter (Chipown)
  • AP2001 - MONOLITHIC DUAL CHANNEL PWM CONTROLLER (Diodes Incorporated)
  • AP2001 - Monolithic Dual Channel PWM Controller (Anachip)
  • AP2002 - Synchronous PWM Controller (Anachip)
  • AP2002 - 1.2MHz 1V Low Input Voltage Synch Step-Up Converter (Chipown)
  • AP2003 - Synchronous PWM Controller (Anachip)
  • AP2004 - PWM BUCK CONTROLLER (Diodes Incorporated)
  • AP2004 - PWM Buck Controller (Anachip)
  • AP2004 - 3A Step Up Regulator (Chipown)
  • AP2004H - 3A Boost Converter (Chipown)
Other Datasheets by LEM

Full PDF Text Transcription

Click to expand full text
AC Current transducer AP-B420L Split core transducer for the electronic measurement AC waveforms current, with galvanic isolation between the primary (High power) and the secondary circuits (Electronic circuit). Switch selectable ranges and RMS 4-20mA current output. IPN = 10 .. 400 A Preliminary Electrical data Primary Nominal Current IPN (A.t.RMS) 10,25,50 50,75,100 100,150,200 200,300,400 RL VC Vd Analogue Output Signal IOUT (mA) 4-20 4-20 4-20 4-20 Type Features • RMS output • Split core type • Loop powered 4-20mA current output • DIN mounting & Panel mounting • Eliminates insertion loss • Switch selectable ranges AP 50 B420L AP 100 B420L AP 200 B420L AP 400 B420L < 350 +24 5 < 25 Ω V DC kV mA Load resistance Supply voltage (loop powered) R.m.s.
