LAM3N2060 Datasheet (LASemi) - 3 Phase 20A/600V IPM

LAM3N2060, 3 Phase 20A/600V IPM

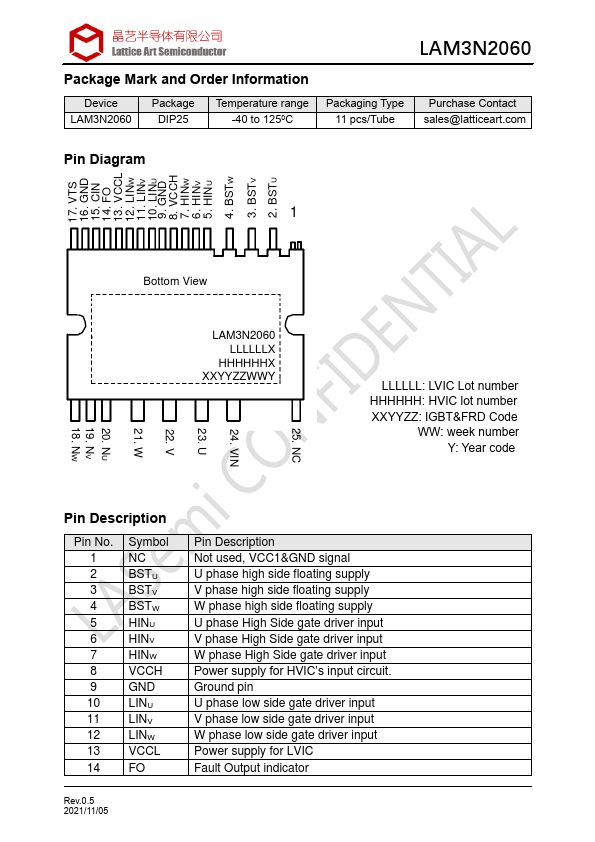

Pin No.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 Symbol NC BSTU BSTV BSTW HINU HINV HINW VCCH GND LINU LINV LINW VCCL FO Pin Description Not used, VCC1&GND signal U phase high side floating supply V phase high side floating supply W phase high side floating supply U phase High Side gate driver input V ph

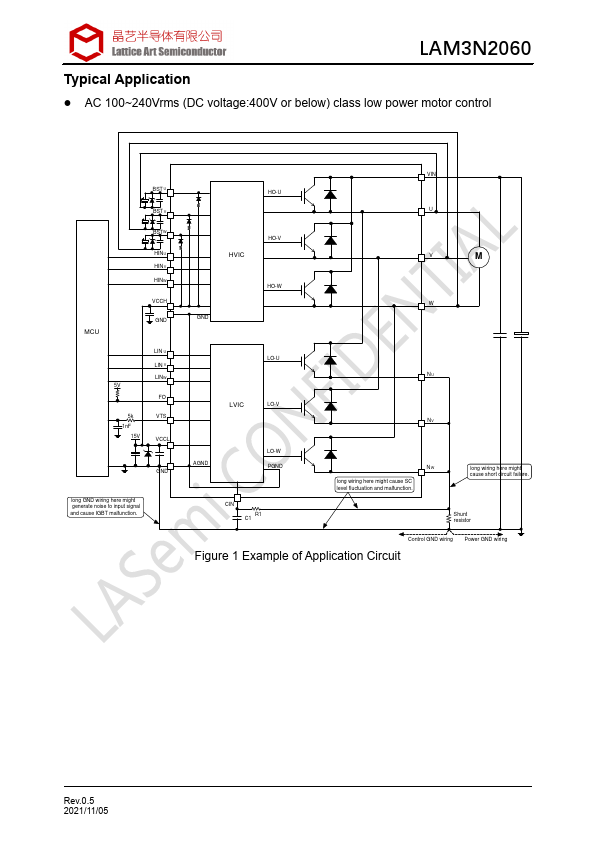

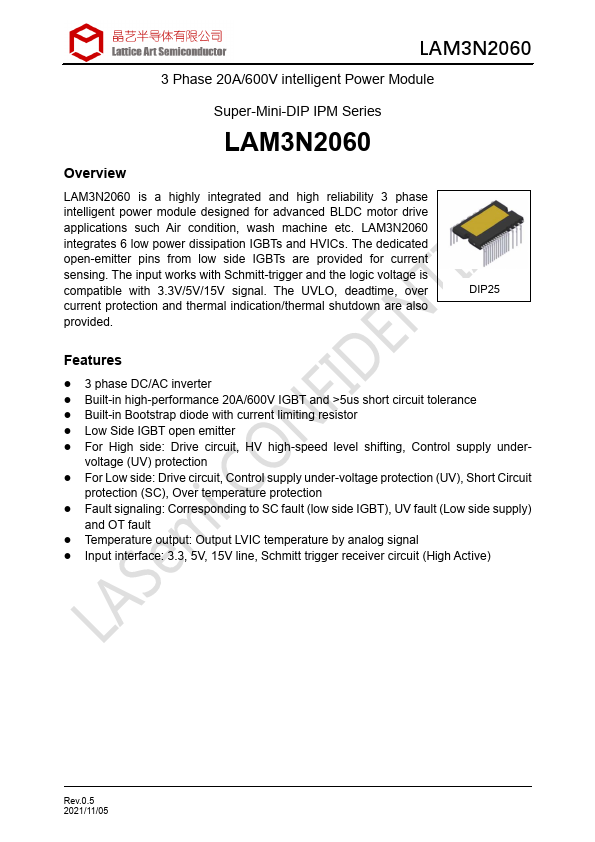

LAM3N2060 3 Phase 20A/600V intelligent Power Module Super-Mini-DIP IPM Series LAM3N2060 Overview LAM3N2060 is a highly integrated and high reliability 3 phase intelligent power module designed for advanced BLDC motor drive applications such Air condition, wash machine etc.

LAM3N2060 integrates 6 low power dissipation IGBTs and HVICs.

The dedicated open-emitter pins from low side IGBTs are provided for current sensing.

The input works with Schmitt-trigger and the logic voltage is compatible wit

LAM3N2060 Features

* 3 phase DC/AC inverter

* Built-in high-performance 20A/600V IGBT and >5us short circuit tolerance

* Built-in Bootstrap diode with current limiting resistor

* Low Side IGBT open emitter

* For High side: Drive circuit, HV high-speed level shifting, Control supply under- voltage (
