MSM51V17400F - DYNAMIC RAM

LAPIS

📥 Download Datasheet

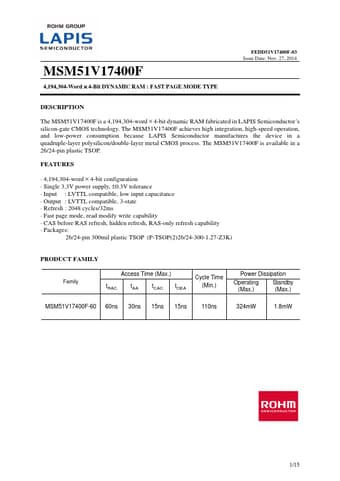

MSM51V17400F Datasheet Preview — Preview of MSM51V17400F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MSM51V17400F
Manufacturer	LAPIS
File Size	317.41 KB
Description	DYNAMIC RAM
Datasheet	MSM51V17400F-LAPIS.pdf

MSM51V17400F Product details

Description

The MSM51V17400F is a 4,194,304-word × 4-bit dynamic RAM fabricated in LAPIS Semiconductor’s silicon-gate CMOS technology.

Features

4,194,304-word × 4-bit configuration.
Single 3.3V power supply, ±0.3V tolerance.
Input : LVTTL compatible, low input capacitance.
Output : LVTTL compatible, 3-state.
Refresh : 2048 cycles/32ms.
Fast page mode, read modify write capability.
CAS before RAS refresh, hidden refresh, RAS-only refresh capability.
Packages: 26/24-pin 300mil plastic TSOP (P-TSOP(2)26/24-300-1.27-Z3K).
